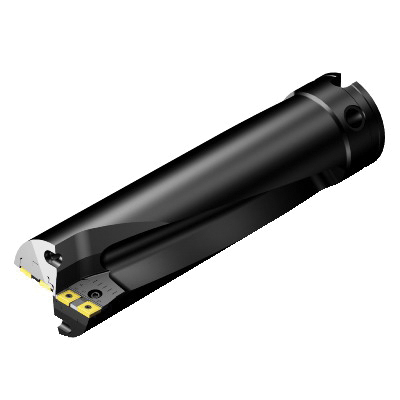

Sandvik Coromant 6660406 CoroDrill® 880 Insert Drill, 3.2283 in Drill, 3.1496 in Shank, 17.0866 in AOL, 13.2283 in D Maximum Drill, 4.097
Custom_Product_Images_Illustration
Sandvik Coromant 6660406 CoroDrill® 880 Insert Drill, 3.2283 in Drill, 3.1496 in Shank, 17.0866 in AOL, 13.2283 in D Maximum Drill, 4.097
SKU1244126
MFGR #6660406
$/ea
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 3.2283 in Drill, 3.1496 in Shank Dia, 13.2283 in Maximum Drill Depth, 17.0866 in Overall Length, 4.097 Drill Depth by Dia Ratio, 2 Drill Inserts, Insert Compatibility: 880-070406H-C-GM (MIIDM) and 880-0704W06H-P-GM (MIIDM), 13.2283 in Flute Length
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 3.2283 in Drill, 3.1496 in Shank Dia, 13.2283 in Maximum Drill Depth, 17.0866 in Overall Length, 4.097 Drill Depth by Dia Ratio, 2 Drill Inserts, Insert Compatibility: 880-070406H-C-GM (MIIDM) and 880-0704W06H-P-GM (MIIDM), 13.2283 in Flute Length
Alternate Catalog Number 880-D0820V80-04 Catalog Number 6660406 Country of Origin NL Drill Depth by Diameter Ratio 4.097XD Gross Weight Per Pack 29.1100 lb Item Group 465 Modular Connection Size 80 mm Number of Drill Inserts 2 Overall Length 17.087 in Series CoroDrill® 880 Standards ISO 13399 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Diameter 3.228 in Drill Size 3.228 in Flute Length 14.63 in Insert Compatibility 880-070406H-C-GM (MIIDM), 880-0704W06H-P-GM (MIIDM) Maximum Drill Depth 13.228 in Shank Diameter 3.15 in Shank Type Varilock Through Coolant Yes Wiper geometry for best surface finish or higher feed possibilities|Easy identification due to laser marking with drill insert and screw codes on the drill shank|Two or four cutting edges depending on drill diameter|Optimized chip channels for accelerated chip evacuation|Optimized geometries assure high performance in most materials|Optimized grades assure longer insert tool life 78 mm Dia body 1.5 mm L point 5000 r/min +/-0.3 mm achievable hole tolerance Axial concentric coolant entry Axial inclined coolant exit 10 bar coolant 40 - 60 deg insert screw clamping EFW feed direction SSK flute 15 deg right hand helix flute 5 deg rake orthogonal 0 deg inclination, 2 flutes 88 deg cutting edge 20 life cycle state 371.61 mm L steel body Features the new Sandvik Coromant innovation, Step technology Closer hole tolerances Advanced insert positioning
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 880-D0820V80-04 |
| Catalog Number | 6660406 |
| Country of Origin | NL |
| Drill Depth by Diameter Ratio | 4.097XD |
| Gross Weight Per Pack | 29.1100 lb |
| Item Group | 465 |
| Modular Connection Size | 80 mm |
| Number of Drill Inserts | 2 |
| Overall Length | 17.087 in |
| Series | CoroDrill® 880 |
| Standards | ISO 13399 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Diameter | 3.228 in |
| Drill Size | 3.228 in |
| Flute Length | 14.63 in |
| Insert Compatibility | 880-070406H-C-GM (MIIDM), 880-0704W06H-P-GM (MIIDM) |
| Maximum Drill Depth | 13.228 in |
| Shank Diameter | 3.15 in |
| Shank Type | Varilock |
| Through Coolant | Yes |
| Wiper geometry for best surface finish or higher feed possibilities|Easy identification due to laser marking with drill insert and screw codes on the drill shank|Two or four cutting edges depending on drill diameter|Optimized chip channels for accelerated chip evacuation|Optimized geometries assure high performance in most materials|Optimized grades assure longer insert tool life |
| 78 mm Dia body |
| 1.5 mm L point |
| 5000 r/min |
| +/-0.3 mm achievable hole tolerance |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 10 bar coolant |
| 40 - 60 deg insert screw clamping |
| EFW feed direction |
| SSK flute |
| 15 deg right hand helix flute |
| 5 deg rake orthogonal |
| 0 deg inclination, 2 flutes |
| 88 deg cutting edge |
| 20 life cycle state |
| 371.61 mm L steel body |
| Features the new Sandvik Coromant innovation, Step technology |
| Closer hole tolerances |
| Advanced insert positioning |
