Sandvik Coromant

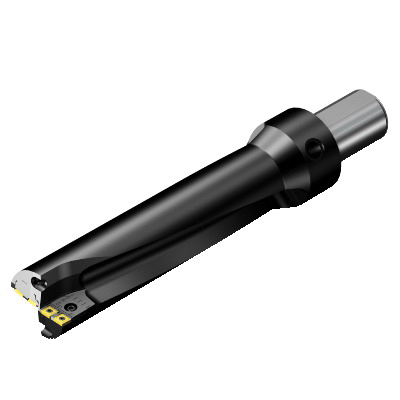

Sandvik Coromant 6660400 CoroDrill® 880 Insert Drill, 2.6771 in Drill, 1.9685 in Shank, 16.7717 in AOL, 10.8661 in D Maximum Drill, 4.058
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6660400 CoroDrill® 880 Insert Drill, 2.6771 in Drill, 1.9685 in Shank, 16.7717 in AOL, 10.8661 in D Maximum Drill, 4.058
SKU1243594
MFGR #6660400
Your Cost: $3,001.25/ea
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 2.6771 in Drill, 1.9685 in Shank Dia, Cylinder Shank, 10.8661 in Maximum Drill Depth, 16.7717 in Overall Length, 4.058 Drill Depth by Dia Ratio, 2 Drill Inserts, Insert Compatibility: 880-060406H-C-GM (MIIDM) and 880-0604W06H-P-GM (MIIDM), 10.8661 in Flute Length
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 2.6771 in Drill, 1.9685 in Shank Dia, Cylinder Shank, 10.8661 in Maximum Drill Depth, 16.7717 in Overall Length, 4.058 Drill Depth by Dia Ratio, 2 Drill Inserts, Insert Compatibility: 880-060406H-C-GM (MIIDM) and 880-0604W06H-P-GM (MIIDM), 10.8661 in Flute Length
Alternate Catalog Number 880-D0680L50-04 Catalog Number 6660400 Country of Origin NL Drill Depth by Diameter Ratio 4.058XD Gross Weight Per Pack 17.4200 lb Item Group 465 Modular Connection Size 1.969 in Number of Drill Inserts 2 Overall Length 16.772 in Series CoroDrill® 880 Standards ISO 13399 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Diameter 2.677 in Drill Size 2.677 in Flute Length 11.093 in Insert Compatibility 880-060406H-C-GM (MIIDM), 880-0604W06H-P-GM (MIIDM) Maximum Drill Depth 10.866 in Shank Diameter 1.969 in Shank Type Cylindrical Through Coolant Yes Wiper geometry for best surface finish or higher feed possibilities|Easy identification due to laser marking with drill insert and screw codes on the drill shank|Two or four cutting edges depending on drill diameter|Optimized chip channels for accelerated chip evacuation|Optimized geometries assure high performance in most materials|Optimized grades assure longer insert tool life 63 mm Dia body 80 mm L clamping 1.3 mm L point 5000 r/min +/-0.3 mm achievable hole tolerance Axial concentric coolant entry Axial inclined coolant exit 10 bar coolant 40 - 60 deg insert screw clamping EFW feed direction SSK flute 15 deg right hand helix flute 5 deg rake orthogonal 47.8 mm H shank 0 deg inclination, 2 flutes 88 deg cutting edge 20 life cycle state 281.77 mm L steel body Features the new Sandvik Coromant innovation, Step technology
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 880-D0680L50-04 |
| Catalog Number | 6660400 |
| Country of Origin | NL |
| Drill Depth by Diameter Ratio | 4.058XD |
| Gross Weight Per Pack | 17.4200 lb |
| Item Group | 465 |
| Modular Connection Size | 1.969 in |
| Number of Drill Inserts | 2 |
| Overall Length | 16.772 in |
| Series | CoroDrill® 880 |
| Standards | ISO 13399 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Diameter | 2.677 in |
| Drill Size | 2.677 in |
| Flute Length | 11.093 in |
| Insert Compatibility | 880-060406H-C-GM (MIIDM), 880-0604W06H-P-GM (MIIDM) |
| Maximum Drill Depth | 10.866 in |
| Shank Diameter | 1.969 in |
| Shank Type | Cylindrical |
| Through Coolant | Yes |
| Wiper geometry for best surface finish or higher feed possibilities|Easy identification due to laser marking with drill insert and screw codes on the drill shank|Two or four cutting edges depending on drill diameter|Optimized chip channels for accelerated chip evacuation|Optimized geometries assure high performance in most materials|Optimized grades assure longer insert tool life |
| 63 mm Dia body |
| 80 mm L clamping |
| 1.3 mm L point |
| 5000 r/min |
| +/-0.3 mm achievable hole tolerance |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 10 bar coolant |
| 40 - 60 deg insert screw clamping |
| EFW feed direction |
| SSK flute |
| 15 deg right hand helix flute |
| 5 deg rake orthogonal |
| 47.8 mm H shank |
| 0 deg inclination, 2 flutes |
| 88 deg cutting edge |
| 20 life cycle state |
| 281.77 mm L steel body |
| Features the new Sandvik Coromant innovation, Step technology |
