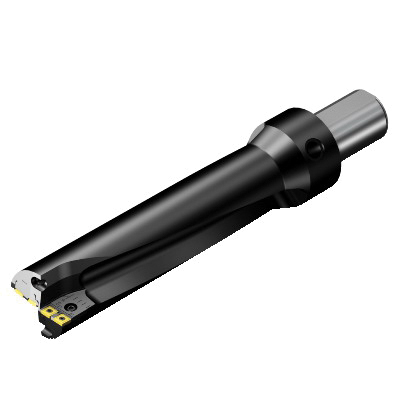

Sandvik Coromant 6660372 CoroDrill® 880 Insert Drill, 3.307 in Drill, 2-1/2 in Shank, 13.2283 in Maximum Drill, 4
Custom_Product_Images_Illustration
Sandvik Coromant 6660372 CoroDrill® 880 Insert Drill, 3.307 in Drill, 2-1/2 in Shank, 13.2283 in Maximum Drill, 4
SKU1244107
MFGR #6660372
$/ea
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 3.307 in Drill, 2-1/2 in Shank Dia, Cylinder Shank, 13.2283 in Maximum Drill Depth, 20.378 in Overall Length, 4 Drill Depth by Dia Ratio, 2 Drill Inserts, Insert Compatibility: 880-070406H-C-GM (MIIDM) and 880-0704W06H-P-GM (MIIDM), 13.2283 in Flute Length
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 3.307 in Drill, 2-1/2 in Shank Dia, Cylinder Shank, 13.2283 in Maximum Drill Depth, 20.378 in Overall Length, 4 Drill Depth by Dia Ratio, 2 Drill Inserts, Insert Compatibility: 880-070406H-C-GM (MIIDM) and 880-0704W06H-P-GM (MIIDM), 13.2283 in Flute Length
Alternate Catalog Number 880-D0840LX63-04 Catalog Number 6660372 Country of Origin US Drill Depth by Diameter Ratio 4XD Gross Weight Per Pack 33.8000 lb Item Group 465 Modular Connection Size 2-1/2 in Overall Length 20.378 in Series CoroDrill® 880 Standards ISO 13399 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Diameter 3.307 in Drill Size 3.307 in Flute Length 14.63 in Insert Compatibility 880-070406H-C-GM (MIIDM), 880-0704W06H-P-GM (MIIDM) Maximum Drill Depth 13.228 in Shank Diameter 2-1/2 in Shank Length 4.0591 in Shank Type Cylindrical Through Coolant Yes Wiper geometry for best surface finish or higher feed possibilities|Easy identification due to laser marking with drill insert and screw codes on the drill shank|Two or four cutting edges depending on drill diameter|Optimized chip channels for accelerated chip evacuation|Optimized geometries assure high performance in most materials|Optimized grades assure longer insert tool life 78 mm Dia body 101.6 mm L clamping 1.5 mm L point 5000 r/min +/-0.3 mm achievable hole tolerance Axial concentric coolant entry Axial inclined coolant exit 10 bar coolant 40 - 60 deg insert screw clamping EFW feed direction SSK flute 15 deg right hand helix flute 5 deg rake orthogonal 61.3 mm H shank 0 deg inclination, 2 flutes 88 deg cutting edge 20 life cycle state 371.61 mm L steel body Features the new Sandvik Coromant innovation, Step technology
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 880-D0840LX63-04 |
| Catalog Number | 6660372 |
| Country of Origin | US |
| Drill Depth by Diameter Ratio | 4XD |
| Gross Weight Per Pack | 33.8000 lb |
| Item Group | 465 |
| Modular Connection Size | 2-1/2 in |
| Overall Length | 20.378 in |
| Series | CoroDrill® 880 |
| Standards | ISO 13399 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Diameter | 3.307 in |
| Drill Size | 3.307 in |
| Flute Length | 14.63 in |
| Insert Compatibility | 880-070406H-C-GM (MIIDM), 880-0704W06H-P-GM (MIIDM) |
| Maximum Drill Depth | 13.228 in |
| Shank Diameter | 2-1/2 in |
| Shank Length | 4.0591 in |
| Shank Type | Cylindrical |
| Through Coolant | Yes |
| Wiper geometry for best surface finish or higher feed possibilities|Easy identification due to laser marking with drill insert and screw codes on the drill shank|Two or four cutting edges depending on drill diameter|Optimized chip channels for accelerated chip evacuation|Optimized geometries assure high performance in most materials|Optimized grades assure longer insert tool life |
| 78 mm Dia body |
| 101.6 mm L clamping |
| 1.5 mm L point |
| 5000 r/min |
| +/-0.3 mm achievable hole tolerance |
| Axial concentric coolant entry |
| Axial inclined coolant exit |
| 10 bar coolant |
| 40 - 60 deg insert screw clamping |
| EFW feed direction |
| SSK flute |
| 15 deg right hand helix flute |
| 5 deg rake orthogonal |
| 61.3 mm H shank |
| 0 deg inclination, 2 flutes |
| 88 deg cutting edge |
| 20 life cycle state |
| 371.61 mm L steel body |
| Features the new Sandvik Coromant innovation, Step technology |
