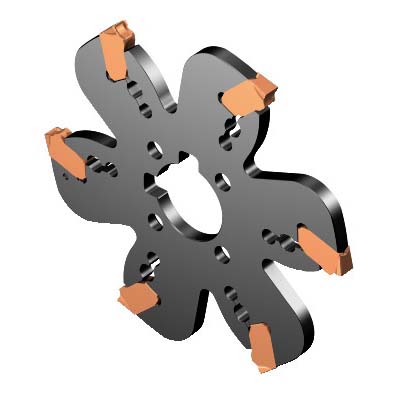

Sandvik Coromant 6657552 CoroMill® QD Indexable, AQD..Y Insert, 5 in Dia x 0.094 in W Cutting, Right Hand, Arbor Shank
Custom_Product_Images_Illustration
Sandvik Coromant 6657552 CoroMill® QD Indexable, AQD..Y Insert, 5 in Dia x 0.094 in W Cutting, Right Hand, Arbor Shank
SKU1236870
MFGR #6657552
$/ea
Sandvik Coromant Grooving and Parting Off Cutter, Indexable, Series: CoroMill® QD, 5 in Cutting Dia, 0.094 in Overall Length, 0.094 in Cutting Width, AQD..Y Insert, 10 Inserts, Insert Compatibility: QD-NF-0239-020E-PM, 1-1/4 in Shank Dia, Arbor Shank, Right Hand Cutting, ANSI Code: AQD-F-127Y31-M, ISO Code: AQD-F-127Y31-M, Steel
Sandvik Coromant Grooving and Parting Off Cutter, Indexable, Series: CoroMill® QD, 5 in Cutting Dia, 0.094 in Overall Length, 0.094 in Cutting Width, AQD..Y Insert, 10 Inserts, Insert Compatibility: QD-NF-0239-020E-PM, 1-1/4 in Shank Dia, Arbor Shank, Right Hand Cutting, ANSI Code: AQD-F-127Y31-M, ISO Code: AQD-F-127Y31-M, Steel
Alternate Catalog Number AQD-F-127Y31-M ANSI Code AQD-F-127Y31-M Arbor Hole Diameter 1-1/4 in Catalog Number 6657552 Country of Origin SE Cutting Direction Right Hand Gross Weight Per Pack 0.6200 lb Insert Compatibility QD-NF-0239-020E-PM Insert Style AQD..Y ISO Code AQD-F-127Y31-M Item Group 450 Material Steel Modular Connection Size Y31 Number of Inserts 10 Overall Length 0.094 in Series CoroMill® QD Shank Type Arbor Toolholder Style AQD..Y Toolholder Type AQD..Y Type Indexable Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Connection Type Arbor Cutting Diameter 5 in Cutting Width 0.0000 in Hole Diameter 1-1/4 in Maximum Depth of Cut 1.26 in 20 life cycle state Without coolant entry Y31 connection size 1 differential cutting pitch Integrated spring clamping No coolant exit 45 mm Dia bolt circle 31.75 mm Dia connection SFW feed direction 2 drive 90 deg cutting edge 2.195 mm L functional 3900 r/min F insert seat size 10 peripheral and face effective cut edge 32 mm D maximum cutting
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | AQD-F-127Y31-M |
| ANSI Code | AQD-F-127Y31-M |
| Arbor Hole Diameter | 1-1/4 in |
| Catalog Number | 6657552 |
| Country of Origin | SE |
| Cutting Direction | Right Hand |
| Gross Weight Per Pack | 0.6200 lb |
| Insert Compatibility | QD-NF-0239-020E-PM |
| Insert Style | AQD..Y |
| ISO Code | AQD-F-127Y31-M |
| Item Group | 450 |
| Material | Steel |
| Modular Connection Size | Y31 |
| Number of Inserts | 10 |
| Overall Length | 0.094 in |
| Series | CoroMill® QD |
| Shank Type | Arbor |
| Toolholder Style | AQD..Y |
| Toolholder Type | AQD..Y |
| Type | Indexable |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Connection Type | Arbor |
| Cutting Diameter | 5 in |
| Cutting Width | 0.0000 in |
| Hole Diameter | 1-1/4 in |
| Maximum Depth of Cut | 1.26 in |
| 20 life cycle state |
| Without coolant entry |
| Y31 connection size |
| 1 differential cutting pitch |
| Integrated spring clamping |
| No coolant exit |
| 45 mm Dia bolt circle |
| 31.75 mm Dia connection |
| SFW feed direction |
| 2 drive |
| 90 deg cutting edge |
| 2.195 mm L functional |
| 3900 r/min |
| F insert seat size |
| 10 peripheral and face effective cut edge |
| 32 mm D maximum cutting |
