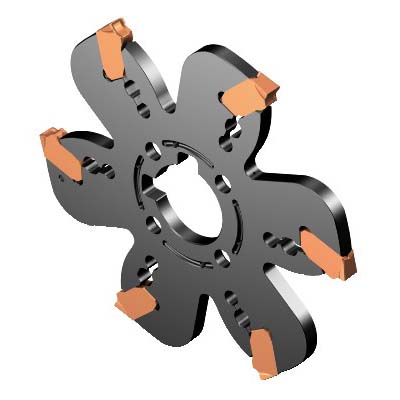

Sandvik Coromant 6657539 CoroMill® QD Indexable, AQD..Y..C Insert, 4 in Dia x 0.1874 in W Cutting, Right Hand, Arbor Shank
Custom_Product_Images_Illustration
Sandvik Coromant 6657539 CoroMill® QD Indexable, AQD..Y..C Insert, 4 in Dia x 0.1874 in W Cutting, Right Hand, Arbor Shank
SKU1236848
MFGR #6657539
$/ea
Sandvik Coromant Grooving and Parting Off Cutter, Indexable, Series: CoroMill® QD, 4 in Cutting Dia, 0.187 in Overall Length, 0.1874 in Cutting Width, AQD..Y..C Insert, 6 Inserts, Insert Compatibility: QD-NJ-0476-030E-PM, 1 in Shank Dia, Arbor Shank, Right Hand Cutting, ANSI Code: AQD-JC102Y25-M, ISO Code: AQD-JC102Y25-M, Steel
Sandvik Coromant Grooving and Parting Off Cutter, Indexable, Series: CoroMill® QD, 4 in Cutting Dia, 0.187 in Overall Length, 0.1874 in Cutting Width, AQD..Y..C Insert, 6 Inserts, Insert Compatibility: QD-NJ-0476-030E-PM, 1 in Shank Dia, Arbor Shank, Right Hand Cutting, ANSI Code: AQD-JC102Y25-M, ISO Code: AQD-JC102Y25-M, Steel
Alternate Catalog Number AQD-JC102Y25-M ANSI Code AQD-JC102Y25-M Arbor Hole Diameter 1 in Catalog Number 6657539 Country of Origin SE Cutting Direction Right Hand Gross Weight Per Pack 0.4700 lb Insert Compatibility QD-NJ-0476-030E-PM Insert Style AQD..Y..C ISO Code AQD-JC102Y25-M Item Group 450 Material Steel Modular Connection Size Y25 Number of Inserts 6 Overall Length 0.187 in Series CoroMill® QD Shank Type Arbor Toolholder Style AQD..Y..C Toolholder Type AQD..Y..C Type Indexable Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Connection Type Arbor Hole Cutting Diameter 4 in Cutting Width 0.0000 in Hole Diameter 1 in Maximum Depth of Cut 1.016 in Axial concentric coolant entry on circle Axial concentric coolant entry on circle Y25 connection size 0 differential cutting pitch Integrated spring clamping Radial exit 36 mm Dia bolt circle 25.4 mm Dia connection SFW feed direction 2 drive 90 deg cutting edge 4.525 mm L functional 3700 r/min J insert seat size 6 peripheral and face effective cut edge 25.8 mm D maximum cutting
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | AQD-JC102Y25-M |
| ANSI Code | AQD-JC102Y25-M |
| Arbor Hole Diameter | 1 in |
| Catalog Number | 6657539 |
| Country of Origin | SE |
| Cutting Direction | Right Hand |
| Gross Weight Per Pack | 0.4700 lb |
| Insert Compatibility | QD-NJ-0476-030E-PM |
| Insert Style | AQD..Y..C |
| ISO Code | AQD-JC102Y25-M |
| Item Group | 450 |
| Material | Steel |
| Modular Connection Size | Y25 |
| Number of Inserts | 6 |
| Overall Length | 0.187 in |
| Series | CoroMill® QD |
| Shank Type | Arbor |
| Toolholder Style | AQD..Y..C |
| Toolholder Type | AQD..Y..C |
| Type | Indexable |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Connection Type | Arbor Hole |
| Cutting Diameter | 4 in |
| Cutting Width | 0.0000 in |
| Hole Diameter | 1 in |
| Maximum Depth of Cut | 1.016 in |
| Axial concentric coolant entry on circle |
| Axial concentric coolant entry on circle |
| Y25 connection size |
| 0 differential cutting pitch |
| Integrated spring clamping |
| Radial exit |
| 36 mm Dia bolt circle |
| 25.4 mm Dia connection |
| SFW feed direction |
| 2 drive |
| 90 deg cutting edge |
| 4.525 mm L functional |
| 3700 r/min |
| J insert seat size |
| 6 peripheral and face effective cut edge |
| 25.8 mm D maximum cutting |
