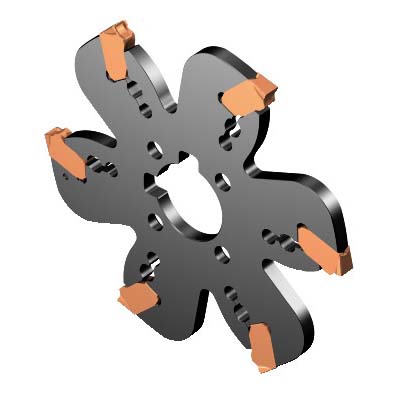

Sandvik Coromant 6657521 CoroMill® QD Indexable, QD..X Insert, 7.874 in Dia x 0.0984 in W Cutting, Right Hand, Arbor Shank
Custom_Product_Images_Illustration
Sandvik Coromant 6657521 CoroMill® QD Indexable, QD..X Insert, 7.874 in Dia x 0.0984 in W Cutting, Right Hand, Arbor Shank
SKU1253040
MFGR #6657521
$/ea
Sandvik Coromant Grooving and Parting Off Cutter, Indexable, Series: CoroMill® QD, 7.874 in Cutting Dia, 0.0984 in Overall Length, 0.0984 in Cutting Width, QD..X Insert, 16 Inserts, Insert Compatibility: QD-NF-0250-020E-PM, 1.5748 in Shank Dia, Arbor Shank, Right Hand Cutting, ANSI Code: QD-F-200X40-M, ISO Code: QD-F-200X40-M, Steel
Sandvik Coromant Grooving and Parting Off Cutter, Indexable, Series: CoroMill® QD, 7.874 in Cutting Dia, 0.0984 in Overall Length, 0.0984 in Cutting Width, QD..X Insert, 16 Inserts, Insert Compatibility: QD-NF-0250-020E-PM, 1.5748 in Shank Dia, Arbor Shank, Right Hand Cutting, ANSI Code: QD-F-200X40-M, ISO Code: QD-F-200X40-M, Steel
Alternate Catalog Number QD-F-200X40-M ANSI Code QD-F-200X40-M Catalog Number 6657521 Country of Origin SE Cutting Direction Right Hand Finish Arbor Gross Weight Per Pack 0.8500 lb Head Length Indexable Insert Compatibility QD-NF-0250-020E-PM Insert Gage Screw 40 mm Insert Style QD..X ISO Code QD-F-200X40-M Item Group 450 Material Steel Number of Inserts 16 Overall Length 0.0984 in Rake CoroMill® QD Series CoroMill® QD Shank Length 2.5 mm Shank Type Arbor Type Indexable Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Diameter 7.874 in Shank Diameter 1.5748 in 20 life cycle state Without coolant entry X40 connection size 0 differential cutting pitch Integrated spring clamping No coolant exit 63 mm Dia bolt circle 40 mm Dia connection SFW feed direction 2 drive 90 deg cutting edge 2.65 mm L functional 3100 r/min F insert seat size 16 peripheral and face effective cut edge 60 mm D maximum cutting
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QD-F-200X40-M |
| ANSI Code | QD-F-200X40-M |
| Catalog Number | 6657521 |
| Country of Origin | SE |
| Cutting Direction | Right Hand |
| Finish | Arbor |
| Gross Weight Per Pack | 0.8500 lb |
| Head Length | Indexable |
| Insert Compatibility | QD-NF-0250-020E-PM |
| Insert Gage Screw | 40 mm |
| Insert Style | QD..X |
| ISO Code | QD-F-200X40-M |
| Item Group | 450 |
| Material | Steel |
| Number of Inserts | 16 |
| Overall Length | 0.0984 in |
| Rake | CoroMill® QD |
| Series | CoroMill® QD |
| Shank Length | 2.5 mm |
| Shank Type | Arbor |
| Type | Indexable |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Diameter | 7.874 in |
| Shank Diameter | 1.5748 in |
| 20 life cycle state |
| Without coolant entry |
| X40 connection size |
| 0 differential cutting pitch |
| Integrated spring clamping |
| No coolant exit |
| 63 mm Dia bolt circle |
| 40 mm Dia connection |
| SFW feed direction |
| 2 drive |
| 90 deg cutting edge |
| 2.65 mm L functional |
| 3100 r/min |
| F insert seat size |
| 16 peripheral and face effective cut edge |
| 60 mm D maximum cutting |
