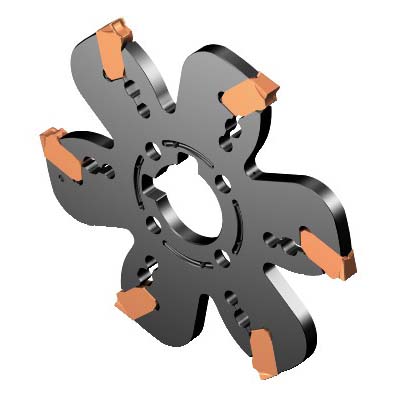

Sandvik Coromant 6657513 CoroMill® QD Indexable, QD..X..C Insert, 3.1496 in Dia x 0.0787 in W Cutting, Right Hand, Arbor Shank
Custom_Product_Images_Illustration
Sandvik Coromant 6657513 CoroMill® QD Indexable, QD..X..C Insert, 3.1496 in Dia x 0.0787 in W Cutting, Right Hand, Arbor Shank
SKU1253098
MFGR #6657513
$/ea
Sandvik Coromant Grooving and Parting Off Cutter, Indexable, Series: CoroMill® QD, 3.1496 in Cutting Dia, 0.0787 in Overall Length, 0.0787 in Cutting Width, QD..X..C Insert, 5 Inserts, Insert Compatibility: QD-NE-0200-020E-PM, 0.3937 in Shank Dia, Arbor Shank, Right Hand Cutting, ANSI Code: QD-EC080X10-M, ISO Code: QD-EC080X10-M, Steel
Sandvik Coromant Grooving and Parting Off Cutter, Indexable, Series: CoroMill® QD, 3.1496 in Cutting Dia, 0.0787 in Overall Length, 0.0787 in Cutting Width, QD..X..C Insert, 5 Inserts, Insert Compatibility: QD-NE-0200-020E-PM, 0.3937 in Shank Dia, Arbor Shank, Right Hand Cutting, ANSI Code: QD-EC080X10-M, ISO Code: QD-EC080X10-M, Steel
Alternate Catalog Number QD-EC080X10-M ANSI Code QD-EC080X10-M Arbor Hole Diameter 0.394 Catalog Number 6657513 Country of Origin SE Cutting Direction Right Hand Finish Arbor Gross Weight Per Pack 0.0800 lb Head Length Right Hand Insert Compatibility QD-NE-0200-020E-PM Insert Gage Screw 10 mm Insert Style QD..X..C ISO Code QD-EC080X10-M Item Group 450 Material Steel Modular Connection Size X10 Number of Inserts 5 Overall Length 0.0787 in Rake 5 Series CoroMill® QD Shank Length Indexable Shank Type Arbor Toolholder Type QD..X..C Type Indexable Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Connection Type Arbor Cutting Diameter 3.1496 in Cutting Width 0.0000 Hole Diameter 0.394 Maximum Depth of Cut 0.945 Shank Diameter 0.3937 in 20 life cycle state Axial concentric coolant entry on circle X10 connection size 0 differential cutting pitch Integrated spring clamping Radial exit 22 mm Dia bolt circle 10 mm Dia connection SFW feed direction 90 deg cutting edge 2.65 mm L functional 4300 r/min E insert seat size 5 peripheral and face effective cut edge 24 mm D maximum cutting
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QD-EC080X10-M |
| ANSI Code | QD-EC080X10-M |
| Arbor Hole Diameter | 0.394 |
| Catalog Number | 6657513 |
| Country of Origin | SE |
| Cutting Direction | Right Hand |
| Finish | Arbor |
| Gross Weight Per Pack | 0.0800 lb |
| Head Length | Right Hand |
| Insert Compatibility | QD-NE-0200-020E-PM |
| Insert Gage Screw | 10 mm |
| Insert Style | QD..X..C |
| ISO Code | QD-EC080X10-M |
| Item Group | 450 |
| Material | Steel |
| Modular Connection Size | X10 |
| Number of Inserts | 5 |
| Overall Length | 0.0787 in |
| Rake | 5 |
| Series | CoroMill® QD |
| Shank Length | Indexable |
| Shank Type | Arbor |
| Toolholder Type | QD..X..C |
| Type | Indexable |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Connection Type | Arbor |
| Cutting Diameter | 3.1496 in |
| Cutting Width | 0.0000 |
| Hole Diameter | 0.394 |
| Maximum Depth of Cut | 0.945 |
| Shank Diameter | 0.3937 in |
| 20 life cycle state |
| Axial concentric coolant entry on circle |
| X10 connection size |
| 0 differential cutting pitch |
| Integrated spring clamping |
| Radial exit |
| 22 mm Dia bolt circle |
| 10 mm Dia connection |
| SFW feed direction |
| 90 deg cutting edge |
| 2.65 mm L functional |
| 4300 r/min |
| E insert seat size |
| 5 peripheral and face effective cut edge |
| 24 mm D maximum cutting |
