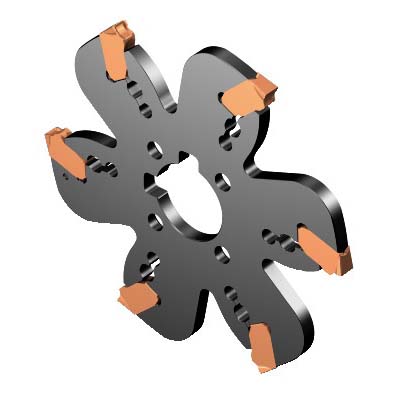

Sandvik Coromant 6657477 CoroMill® QD Indexable, AQD..Y Insert, 6 in Dia x 0.1251 in W Cutting, Right Hand, Arbor Shank
Custom_Product_Images_Illustration
Sandvik Coromant 6657477 CoroMill® QD Indexable, AQD..Y Insert, 6 in Dia x 0.1251 in W Cutting, Right Hand, Arbor Shank
SKU1236817
MFGR #6657477
$/ea
Sandvik Coromant Grooving and Parting Off Cutter, Indexable, Series: CoroMill® QD, 6 in Cutting Dia, 0.1251 in Overall Length, 0.1251 in Cutting Width, AQD..Y Insert, 10 Inserts, Insert Compatibility: QD-NG-0318-020E-PM, 1.5748 in Shank Dia, Arbor Shank, Right Hand Cutting, ANSI Code: AQD-G-152Y38-M, ISO Code: AQD-G-152Y38-M, Steel
Sandvik Coromant Grooving and Parting Off Cutter, Indexable, Series: CoroMill® QD, 6 in Cutting Dia, 0.1251 in Overall Length, 0.1251 in Cutting Width, AQD..Y Insert, 10 Inserts, Insert Compatibility: QD-NG-0318-020E-PM, 1.5748 in Shank Dia, Arbor Shank, Right Hand Cutting, ANSI Code: AQD-G-152Y38-M, ISO Code: AQD-G-152Y38-M, Steel
Alternate Catalog Number AQD-G-152Y38-M ANSI Code AQD-G-152Y38-M Arbor Hole Diameter 1-1/2 in Catalog Number 6657477 Country of Origin SE Cutting Direction Right Hand Gross Weight Per Pack 0.8100 lb Insert Compatibility QD-NG-0318-020E-PM Insert Style AQD..Y ISO Code AQD-G-152Y38-M Item Group 450 Material Steel Modular Connection Size Y38 Number of Inserts 10 Overall Length 0.1251 in Series CoroMill® QD Shank Type Arbor Toolholder Style AQD..Y Toolholder Type AQD..Y Type Indexable Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Connection Type Arbor Hole Cutting Diameter 6 in Cutting Width 0.0000 in Hole Diameter 1-1/2 IN Maximum Depth of Cut 1.425 in 20 life cycle state Without coolant entry Y38 connection size 0 differential cutting pitch Integrated spring clamping No coolant exit 63 mm Dia bolt circle 38.1 mm Dia connection SFW feed direction 2 drive 90 deg cutting edge 2.79 mm L functional 4400 r/min G insert seat size 10 peripheral and face effective cut edge 36.2 mm D maximum cutting
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | AQD-G-152Y38-M |
| ANSI Code | AQD-G-152Y38-M |
| Arbor Hole Diameter | 1-1/2 in |
| Catalog Number | 6657477 |
| Country of Origin | SE |
| Cutting Direction | Right Hand |
| Gross Weight Per Pack | 0.8100 lb |
| Insert Compatibility | QD-NG-0318-020E-PM |
| Insert Style | AQD..Y |
| ISO Code | AQD-G-152Y38-M |
| Item Group | 450 |
| Material | Steel |
| Modular Connection Size | Y38 |
| Number of Inserts | 10 |
| Overall Length | 0.1251 in |
| Series | CoroMill® QD |
| Shank Type | Arbor |
| Toolholder Style | AQD..Y |
| Toolholder Type | AQD..Y |
| Type | Indexable |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Connection Type | Arbor Hole |
| Cutting Diameter | 6 in |
| Cutting Width | 0.0000 in |
| Hole Diameter | 1-1/2 IN |
| Maximum Depth of Cut | 1.425 in |
| 20 life cycle state |
| Without coolant entry |
| Y38 connection size |
| 0 differential cutting pitch |
| Integrated spring clamping |
| No coolant exit |
| 63 mm Dia bolt circle |
| 38.1 mm Dia connection |
| SFW feed direction |
| 2 drive |
| 90 deg cutting edge |
| 2.79 mm L functional |
| 4400 r/min |
| G insert seat size |
| 10 peripheral and face effective cut edge |
| 36.2 mm D maximum cutting |
