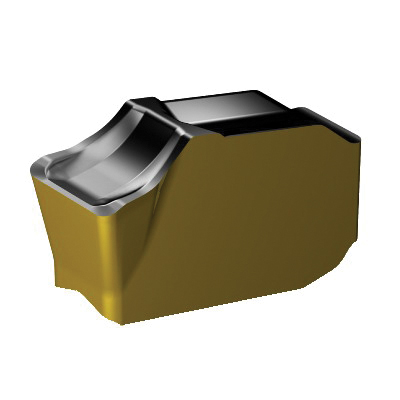

Sandvik Coromant 6657104 CoroMill® QD Grooving Insert, QD-NG-0318-020M-PM 4240, QD-N..M-PM Insert, 0.1251 in W Cutting, 4240, QD-NG-0318-020M-PM 4240
Custom_Product_Images_Illustration
Sandvik Coromant 6657104 CoroMill® QD Grooving Insert, QD-NG-0318-020M-PM 4240, QD-N..M-PM Insert, 0.1251 in W Cutting, 4240, QD-NG-0318-020M-PM 4240
SKU1243812
MFGR #6657104
$/ea
Sandvik Coromant Grooving Insert, Series: CoroMill® QD, QD-N..M-PM Insert, 0.1251 in Cutting Width, PM Chipbreaker, 0.0078 in Corner Radius, 0.122 in Thickness, Manufacturers Grade: 4240, ANSI Code: QD-NG-0318-020M-PM 4240, ISO Code: QD-NG-0318-020M-PM 4240, Neutral Hand, Carbide, MTCVD Coated, Material Grade: P
Sandvik Coromant Grooving Insert, Series: CoroMill® QD, QD-N..M-PM Insert, 0.1251 in Cutting Width, PM Chipbreaker, 0.0078 in Corner Radius, 0.122 in Thickness, Manufacturers Grade: 4240, ANSI Code: QD-NG-0318-020M-PM 4240, ISO Code: QD-NG-0318-020M-PM 4240, Neutral Hand, Carbide, MTCVD Coated, Material Grade: P
ANSI Code QD-NG-0318-020M-PM 4240 Catalog Number 6657104 Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.2900 lb ISO Code QD-NG-0318-020M-PM 4240 Material Grade P Series CoroMill® QD Thickness 0.122 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer SANDVIK COROMANT CO Chipbreaker PM Corner Radius 0.008 in Cutting Direction Neutral Insert Size G Insert Style QD-N Manufacturer's Grade 4240 Material Carbide 7 deg clearance 10 life cycle state 0 deg body machine side 0.005 mm W cutting lower tolerance 0.105 mm W cutting upper tolerance Medium operation Concave clamping E cutting edge condition 1-side cutting 0.07 - 0.15 mm/r cutting feed 7 insert mounting style code G insert seat size code M tolerance class insert
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | QD-NG-0318-020M-PM 4240 |
| Catalog Number | 6657104 |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.2900 lb |
| ISO Code | QD-NG-0318-020M-PM 4240 |
| Material Grade | P |
| Series | CoroMill® QD |
| Thickness | 0.122 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | SANDVIK COROMANT CO |
| Chipbreaker | PM |
| Corner Radius | 0.008 in |
| Cutting Direction | Neutral |
| Insert Size | G |
| Insert Style | QD-N |
| Manufacturer's Grade | 4240 |
| Material | Carbide |
| 7 deg clearance |
| 10 life cycle state |
| 0 deg body machine side |
| 0.005 mm W cutting lower tolerance |
| 0.105 mm W cutting upper tolerance |
| Medium operation |
| Concave clamping |
| E cutting edge condition |
| 1-side cutting |
| 0.07 - 0.15 mm/r cutting feed |
| 7 insert mounting style code |
| G insert seat size code |
| M tolerance class insert |
