Sandvik Coromant 6656954 CoroMill® QD Grooving Insert, QD-NJ-0500-030E-SM S30T, QD-N..E-SM Insert, 0.1968 in W Cutting, S30T, QD-NJ-0500-030E-SM S30T

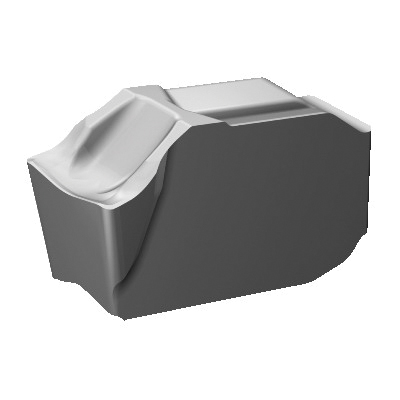

Custom_Product_Images_Illustration
Sandvik Coromant 6656954 CoroMill® QD Grooving Insert, QD-NJ-0500-030E-SM S30T, QD-N..E-SM Insert, 0.1968 in W Cutting, S30T, QD-NJ-0500-030E-SM S30T
SKU1252782
MFGR #6656954
Your Cost: $32.51/ea
List: Sandvik Coromant Grooving Insert, Series: CoroMill® QD, QD-N..E-SM Insert, 0.1968 in Cutting Width, SM Chipbreaker, 0.0118 in Corner Radius, 0.1968 in Thickness, 0.5511 in Length, Manufacturers Grade: S30T, ANSI Code: QD-NJ-0500-030E-SM S30T, ISO Code: QD-NJ-0500-030E-SM S30T, Neutral Hand, Carbide, PVD Coated, Material Grade: M/S
Sandvik Coromant Grooving Insert, Series: CoroMill® QD, QD-N..E-SM Insert, 0.1968 in Cutting Width, SM Chipbreaker, 0.0118 in Corner Radius, 0.1968 in Thickness, 0.5511 in Length, Manufacturers Grade: S30T, ANSI Code: QD-NJ-0500-030E-SM S30T, ISO Code: QD-NJ-0500-030E-SM S30T, Neutral Hand, Carbide, PVD Coated, Material Grade: M/S
Alternate Catalog Number QD-NJ-0500-030E-SM S30T ANSI Code QD-NJ-0500-030E-SM S30T Catalog Number 6656954 Country of Origin SE Finish PVD Coated Gross Weight Per Pack 0.0100 lb Hand of Insert Neutral Hole Diameter Carbide ISO Code QD-NJ-0500-030E-SM S30T Item Group 350 Length 0.5511 in Material Grade M/S Series CoroMill® QD Shape 5 mm Thickness 0.1968 in Type QD-N..E-SM Width S30T Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker SM Corner Radius 0.0118 in Cutting Direction Neutral Cutting Width 0.0000 Insert Size CoroMill® QD Insert Style QD-N..E-SM Lead Angle 5 mm Manufacturer's Grade S30T Material Carbide Maximum Depth of Cut Neutral Rake Carbide 7 deg clearance 20 life cycle state 0 deg body machine side 0.005 mm W cutting lower tolerance 0.055 mm W cutting upper tolerance Medium operation Concave clamping E cutting edge condition 1-side cutting 0.04 - 0.12 mm/r cutting feed 7 insert mounting style code J insert seat size code E tolerance class insert
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QD-NJ-0500-030E-SM S30T |
| ANSI Code | QD-NJ-0500-030E-SM S30T |
| Catalog Number | 6656954 |
| Country of Origin | SE |
| Finish | PVD Coated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Neutral |
| Hole Diameter | Carbide |
| ISO Code | QD-NJ-0500-030E-SM S30T |
| Item Group | 350 |
| Length | 0.5511 in |
| Material Grade | M/S |
| Series | CoroMill® QD |
| Shape | 5 mm |
| Thickness | 0.1968 in |
| Type | QD-N..E-SM |
| Width | S30T |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | SM |
| Corner Radius | 0.0118 in |
| Cutting Direction | Neutral |
| Cutting Width | 0.0000 |
| Insert Size | CoroMill® QD |
| Insert Style | QD-N..E-SM |
| Lead Angle | 5 mm |
| Manufacturer's Grade | S30T |
| Material | Carbide |
| Maximum Depth of Cut | Neutral |
| Rake | Carbide |
| 7 deg clearance |
| 20 life cycle state |
| 0 deg body machine side |
| 0.005 mm W cutting lower tolerance |
| 0.055 mm W cutting upper tolerance |
| Medium operation |
| Concave clamping |
| E cutting edge condition |
| 1-side cutting |
| 0.04 - 0.12 mm/r cutting feed |
| 7 insert mounting style code |
| J insert seat size code |
| E tolerance class insert |
