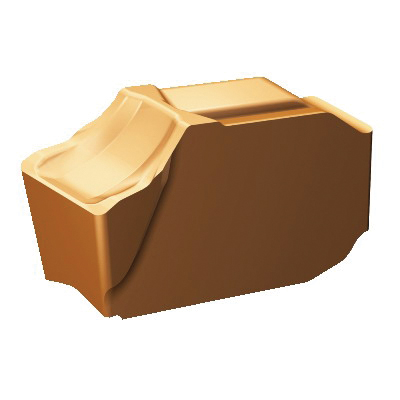

Sandvik Coromant 6656909 CoroMill® QD Grooving Insert, QD-NE-0200-020E-PM 1030, QD-N..E-PM Insert, 0.0787 in W Cutting, 1030, QD-NE-0200-020E-PM 1030
Custom_Product_Images_Illustration
Sandvik Coromant 6656909 CoroMill® QD Grooving Insert, QD-NE-0200-020E-PM 1030, QD-N..E-PM Insert, 0.0787 in W Cutting, 1030, QD-NE-0200-020E-PM 1030
SKU1229504
MFGR #6656909
$/ea
Sandvik Coromant Grooving Insert, Series: CoroMill® QD, QD-N..E-PM Insert, 0.0787 in Cutting Width, PM Chipbreaker, 0.0078 in Corner Radius, 0.122 in Thickness, Manufacturers Grade: 1030, ANSI Code: QD-NE-0200-020E-PM 1030, ISO Code: QD-NE-0200-020E-PM 1030, Neutral Hand, Carbide, PVD Coated, Material Grade: P
Sandvik Coromant Grooving Insert, Series: CoroMill® QD, QD-N..E-PM Insert, 0.0787 in Cutting Width, PM Chipbreaker, 0.0078 in Corner Radius, 0.122 in Thickness, Manufacturers Grade: 1030, ANSI Code: QD-NE-0200-020E-PM 1030, ISO Code: QD-NE-0200-020E-PM 1030, Neutral Hand, Carbide, PVD Coated, Material Grade: P
ANSI Code QD-NE-0200-020E-PM 1030 Catalog Number 6656909 Country of Origin SE Finish PVD Coated Gross Weight Per Pack 1 lb Hand of Insert Neutral ISO Code QD-NE-0200-020E-PM 1030 Material Grade P Series CoroMill® QD Shape Carbide Thickness 0.122 in Type 1030 Width PVD Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PM Corner Radius 0.0078 in Insert Size CoroMill® QD Insert Style QD-N..E-PM Lead Angle QD-NE-0200-020E-PM 1030 Manufacturer's Grade 1030 Material Carbide Maximum Depth of Cut QD-N..E-PM Rake 0.2 mm 7 deg clearance 20 life cycle state 0 deg body machine side 0.005 mm W cutting lower tolerance 0.055 mm W cutting upper tolerance Medium operation Concave clamping E cutting edge condition 1-side cutting 0.07 - 0.15 mm/r cutting feed 7 insert mounting style code E insert seat size code E tolerance class insert
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | QD-NE-0200-020E-PM 1030 |
| Catalog Number | 6656909 |
| Country of Origin | SE |
| Finish | PVD Coated |
| Gross Weight Per Pack | 1 lb |
| Hand of Insert | Neutral |
| ISO Code | QD-NE-0200-020E-PM 1030 |
| Material Grade | P |
| Series | CoroMill® QD |
| Shape | Carbide |
| Thickness | 0.122 in |
| Type | 1030 |
| Width | PVD |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PM |
| Corner Radius | 0.0078 in |
| Insert Size | CoroMill® QD |
| Insert Style | QD-N..E-PM |
| Lead Angle | QD-NE-0200-020E-PM 1030 |
| Manufacturer's Grade | 1030 |
| Material | Carbide |
| Maximum Depth of Cut | QD-N..E-PM |
| Rake | 0.2 mm |
| 7 deg clearance |
| 20 life cycle state |
| 0 deg body machine side |
| 0.005 mm W cutting lower tolerance |
| 0.055 mm W cutting upper tolerance |
| Medium operation |
| Concave clamping |
| E cutting edge condition |
| 1-side cutting |
| 0.07 - 0.15 mm/r cutting feed |
| 7 insert mounting style code |
| E insert seat size code |
| E tolerance class insert |
