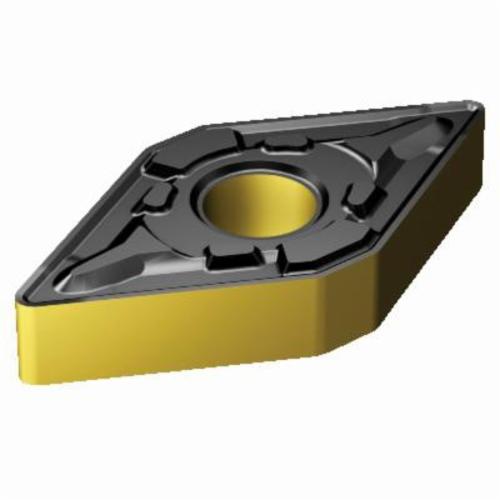

Sandvik Coromant 6612990 T-Max® P Negative Basic Shape Turning Insert, DNMG 444-PR 4315, D-55 deg Diamond, DNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6612990 T-Max® P Negative Basic Shape Turning Insert, DNMG 444-PR 4315, D-55 deg Diamond, DNMG Insert
SKU1250207
MFGR #6612990
$/ea
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 6 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 1/4 in Thickness, 0.6103 in Length, PR Chipbreaker, 0.0624 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 4315, ANSI Code: DNMG 444-PR 4315, ISO Code: DNMG 15 06 16-PR 4315, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 6 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 1/4 in Thickness, 0.6103 in Length, PR Chipbreaker, 0.0624 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 4315, ANSI Code: DNMG 444-PR 4315, ISO Code: DNMG 15 06 16-PR 4315, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Alternate Catalog Number DNMG 444-PR 4315 ANSI Code DNMG 444-PR 4315 Catalog Number 6612990 Corner Radius 0.0624 in Country of Origin IN Finish MTCVD Coated Gross Weight Per Pack 0.0300 lb Hand of Insert Neutral Hole Diameter 0.2029 in Included Angle 55 deg ISO Code DNMG 15 06 16-PR 4315 Item Group 112 Length 0.6103 in Relief Angle 0 deg Series T-Max® P Thickness 1/4 in Type Negative Basic Shape Width PR Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PR Cutting Direction Neutral For Use On Cast Iron and Steel Inscribed Circle 1/2 in Insert Size D - 55 deg Diamond Insert Style DNMG Manufacturer's Grade 4315 Material Carbide Material Grade K/P Maximum Depth of Cut 6 mm Rake Negative Seat Size 15 Shape D-55 deg Diamond Straight hole and non-flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.32 - 0.75 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | DNMG 444-PR 4315 |
| ANSI Code | DNMG 444-PR 4315 |
| Catalog Number | 6612990 |
| Corner Radius | 0.0624 in |
| Country of Origin | IN |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0300 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.2029 in |
| Included Angle | 55 deg |
| ISO Code | DNMG 15 06 16-PR 4315 |
| Item Group | 112 |
| Length | 0.6103 in |
| Relief Angle | 0 deg |
| Series | T-Max® P |
| Thickness | 1/4 in |
| Type | Negative Basic Shape |
| Width | PR |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PR |
| Cutting Direction | Neutral |
| For Use On | Cast Iron and Steel |
| Inscribed Circle | 1/2 in |
| Insert Size | D - 55 deg Diamond |
| Insert Style | DNMG |
| Manufacturer's Grade | 4315 |
| Material | Carbide |
| Material Grade | K/P |
| Maximum Depth of Cut | 6 mm |
| Rake | Negative |
| Seat Size | 15 |
| Shape | D-55 deg Diamond |
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.32 - 0.75 mm/r cutting feed |
| 20 life cycle state |
