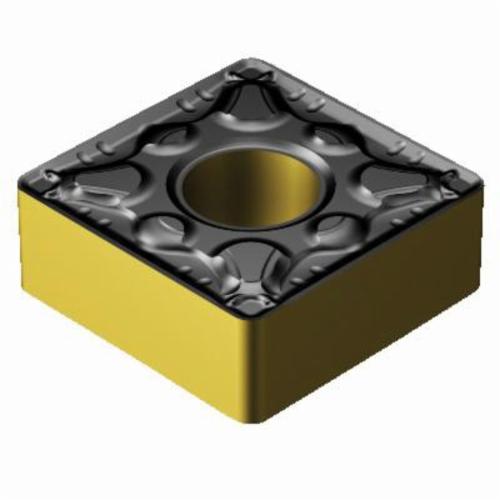

Sandvik Coromant 6612921 T-Max® P Negative Basic Shape Turning Insert, SNMG 321-PM 4315, S-Square, SNMG Insert, 4315, Carbide
Custom_Product_Images_Illustration
Sandvik Coromant 6612921 T-Max® P Negative Basic Shape Turning Insert, SNMG 321-PM 4315, S-Square, SNMG Insert, 4315, Carbide
SKU1238521
MFGR #6612921
$/ea
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 4.5 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 1/8 in Thickness, 3/8 in Length, PM Chipbreaker, 0.0156 in Corner Radius, 0.15 in Hole Dia, Manufacturer's Grade: 4315, ANSI Code: SNMG 321-PM 4315, ISO Code: SNMG 09 03 04-PM 4315, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 4.5 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 1/8 in Thickness, 3/8 in Length, PM Chipbreaker, 0.0156 in Corner Radius, 0.15 in Hole Dia, Manufacturer's Grade: 4315, ANSI Code: SNMG 321-PM 4315, ISO Code: SNMG 09 03 04-PM 4315, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Alternate Catalog Number SNMG 321-PM 4315 ANSI Code SNMG 321-PM 4315 Catalog Number 6612921 Corner Radius 0.0156 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.1000 lb Hole Diameter 0.15 in Included Angle 90 ° ISO Code SNMG 09 03 04-PM 4315 Item Group 112 Length 3/8 in Relief Angle 0 ° Series T-Max® P Thickness 1/8 in Width 3/8 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PM Cutting Direction Neutral For Use On Cast Iron and Steel Inscribed Circle 3/8 in Insert Size 321 Insert Style SNMG Manufacturer's Grade 4315 Material Carbide Material Grade K, P Maximum Depth of Cut 4.5 mm Rake Negative Seat Size 09 Shape Square T7335 grade functionally gradient substrate with medium grain size Relatively high cobalt content Relatively thin coating applied with the MT-CVD method Material shows very high strength Special surface finish for coating Medium cutting speeds Continuous and heavily interrupted cut Also withstands very unfavorable machining conditions
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | SNMG 321-PM 4315 |
| ANSI Code | SNMG 321-PM 4315 |
| Catalog Number | 6612921 |
| Corner Radius | 0.0156 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.1000 lb |
| Hole Diameter | 0.15 in |
| Included Angle | 90 ° |
| ISO Code | SNMG 09 03 04-PM 4315 |
| Item Group | 112 |
| Length | 3/8 in |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 1/8 in |
| Width | 3/8 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PM |
| Cutting Direction | Neutral |
| For Use On | Cast Iron and Steel |
| Inscribed Circle | 3/8 in |
| Insert Size | 321 |
| Insert Style | SNMG |
| Manufacturer's Grade | 4315 |
| Material | Carbide |
| Material Grade | K, P |
| Maximum Depth of Cut | 4.5 mm |
| Rake | Negative |
| Seat Size | 09 |
| Shape | Square |
| T7335 grade functionally gradient substrate with medium grain size |
| Relatively high cobalt content |
| Relatively thin coating applied with the MT-CVD method |
| Material shows very high strength |
| Special surface finish for coating |
| Medium cutting speeds |
| Continuous and heavily interrupted cut |
| Also withstands very unfavorable machining conditions |
