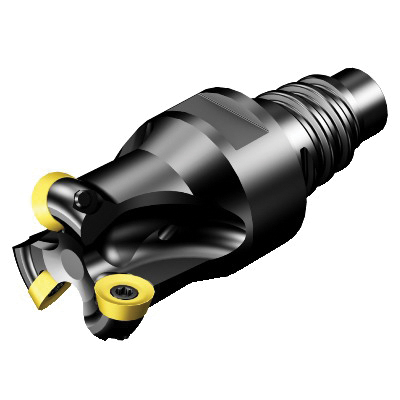

Sandvik Coromant 6550030 CoroMill® 300 Face Milling Cutter, 0.2244 in Cutting, 0.4842 in Shank, 1.5275 in OAL, RA300..EH Insert, 0.1377 in Max Depth of Cut
Custom_Product_Images_Illustration
Sandvik Coromant 6550030 CoroMill® 300 Face Milling Cutter, 0.2244 in Cutting, 0.4842 in Shank, 1.5275 in OAL, RA300..EH Insert, 0.1377 in Max Depth of Cut
SKU1239675
MFGR #6550030
$/ea
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 300, 0.2244 in Cutting Dia, 1.5275 in Overall Length, 0.1377 in Maximum Depth of Cut, RA300..EH Insert, 2 Inserts, Insert Compatibility: R300-0720, 0.4842 in Shank Dia, Right Hand Cutting, ANSI Code: RA300-13EH12-07L, ISO Code: RA300-13EH12-07L, Steel
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 300, 0.2244 in Cutting Dia, 1.5275 in Overall Length, 0.1377 in Maximum Depth of Cut, RA300..EH Insert, 2 Inserts, Insert Compatibility: R300-0720, 0.4842 in Shank Dia, Right Hand Cutting, ANSI Code: RA300-13EH12-07L, ISO Code: RA300-13EH12-07L, Steel
ANSI Code RA300-13EH12-07L Catalog Number 6550030 Country of Origin US Gross Weight Per Pack 2.2000 lb ISO Code RA300-13EH12-07L Material Steel Series CoroMill® 300 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer SANDVIK COROMANT CO Arbor Hole Diameter 0.4843 in Cutting Diameter 0.2244 in Cutting Direction Right Hand Insert Compatibility R300-0720 Insert Style RA300..EH Maximum Depth of Cut 0.1377 in Number of Inserts 2 Overall Length 1.5275 in Shank Diameter 0.4843 in Through Coolant Yes Axial concentric coolant entry Coromant EH adaptive interface Axial concentric coolant entry 10 bar coolant pressure 40 - 60 deg insert screw clamping interface 12.7 mm Dia maximum cutting 25 mm overhang 20 deg maximum ramping 20000 r/min 0.9 Nm torque 20 life cycle state Coromant EH adaptive interface
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | RA300-13EH12-07L |
| Catalog Number | 6550030 |
| Country of Origin | US |
| Gross Weight Per Pack | 2.2000 lb |
| ISO Code | RA300-13EH12-07L |
| Material | Steel |
| Series | CoroMill® 300 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | SANDVIK COROMANT CO |
| Arbor Hole Diameter | 0.4843 in |
| Cutting Diameter | 0.2244 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | R300-0720 |
| Insert Style | RA300..EH |
| Maximum Depth of Cut | 0.1377 in |
| Number of Inserts | 2 |
| Overall Length | 1.5275 in |
| Shank Diameter | 0.4843 in |
| Through Coolant | Yes |
| Axial concentric coolant entry |
| Coromant EH adaptive interface |
| Axial concentric coolant entry |
| 10 bar coolant pressure |
| 40 - 60 deg insert screw clamping interface |
| 12.7 mm Dia maximum cutting |
| 25 mm overhang |
| 20 deg maximum ramping |
| 20000 r/min |
| 0.9 Nm torque |
| 20 life cycle state |
| Coromant EH adaptive interface |
