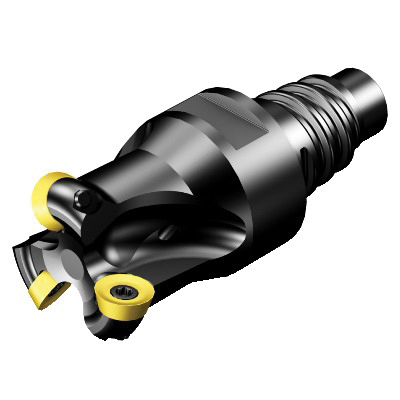

Sandvik Coromant 6550027 CoroMill® 300 Face Milling Cutter, 0.6299 in Cutting, 0.9527 in Shank, 2.5196 in OAL, R300..EH Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6550027 CoroMill® 300 Face Milling Cutter, 0.6299 in Cutting, 0.9527 in Shank, 2.5196 in OAL, R300..EH Insert
SKU1238902
MFGR #6550027
$/ea
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 300, 0.6299 in Cutting Dia, 2.5196 in Overall Length, 0.3149 in Maximum Depth of Cut, R300..EH Insert, 2 Inserts, Insert Compatibility: R300-1648, 0.9527 in Shank Dia, Right Hand Cutting, ANSI Code: R300-32EH25-16L, ISO Code: R300-32EH25-16L, Steel
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 300, 0.6299 in Cutting Dia, 2.5196 in Overall Length, 0.3149 in Maximum Depth of Cut, R300..EH Insert, 2 Inserts, Insert Compatibility: R300-1648, 0.9527 in Shank Dia, Right Hand Cutting, ANSI Code: R300-32EH25-16L, ISO Code: R300-32EH25-16L, Steel
Alternate Catalog Number R300-32EH25-16L ANSI Code R300-32EH25-16L Catalog Number 6550027 Country of Origin US Gross Weight Per Pack 0.5100 lb ISO Code R300-32EH25-16L Item Group 440 Material Steel Series CoroMill® 300 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Arbor Hole Diameter 0.9527 in Cutting Diameter 0.6299 in Cutting Direction Right Hand Insert Compatibility R300-1648 Insert Style R300..EH Maximum Depth of Cut 0.3149 in Number of Inserts 2 Overall Length 2.5196 in Shank Diameter 0.9527 in Shank Type Coromant EH Through Coolant Yes Axial concentric coolant entry Coromant EH adaptive interface Axial concentric coolant entry 10 bar coolant pressure 40 - 60 deg insert screw clamping interface 32 mm Dia maximum cutting 40 mm overhang 20 deg maximum ramping 15000 r/min 5 Nm torque 20 life cycle state Coromant EH adaptive interface
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | R300-32EH25-16L |
| ANSI Code | R300-32EH25-16L |
| Catalog Number | 6550027 |
| Country of Origin | US |
| Gross Weight Per Pack | 0.5100 lb |
| ISO Code | R300-32EH25-16L |
| Item Group | 440 |
| Material | Steel |
| Series | CoroMill® 300 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Arbor Hole Diameter | 0.9527 in |
| Cutting Diameter | 0.6299 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | R300-1648 |
| Insert Style | R300..EH |
| Maximum Depth of Cut | 0.3149 in |
| Number of Inserts | 2 |
| Overall Length | 2.5196 in |
| Shank Diameter | 0.9527 in |
| Shank Type | Coromant EH |
| Through Coolant | Yes |
| Axial concentric coolant entry |
| Coromant EH adaptive interface |
| Axial concentric coolant entry |
| 10 bar coolant pressure |
| 40 - 60 deg insert screw clamping interface |
| 32 mm Dia maximum cutting |
| 40 mm overhang |
| 20 deg maximum ramping |
| 15000 r/min |
| 5 Nm torque |
| 20 life cycle state |
| Coromant EH adaptive interface |
