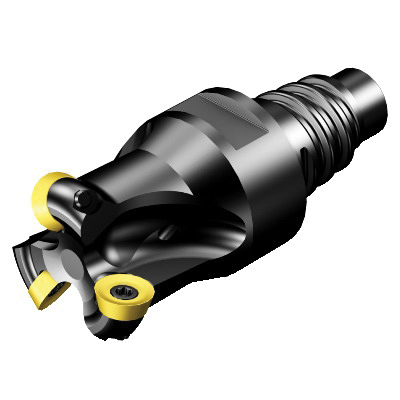

Sandvik Coromant 6550021 CoroMill® 300 Face Milling Cutter, 0.5905 in Cutting, 0.9527 in Shank, 2.3228 in OAL, R300..EH Insert, 0.1968 in Max Depth of Cut
Custom_Product_Images_Illustration
Sandvik Coromant 6550021 CoroMill® 300 Face Milling Cutter, 0.5905 in Cutting, 0.9527 in Shank, 2.3228 in OAL, R300..EH Insert, 0.1968 in Max Depth of Cut
SKU1238900
MFGR #6550021
$/ea
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 300, 0.5905 in Cutting Dia, 2.3228 in Overall Length, 0.1968 in Maximum Depth of Cut, R300..EH Insert, 2 Inserts, Insert Compatibility: R300-1032, 0.9527 in Shank Dia, Right Hand Cutting, ANSI Code: R300-25EH25-10L, ISO Code: R300-25EH25-10L, Steel
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 300, 0.5905 in Cutting Dia, 2.3228 in Overall Length, 0.1968 in Maximum Depth of Cut, R300..EH Insert, 2 Inserts, Insert Compatibility: R300-1032, 0.9527 in Shank Dia, Right Hand Cutting, ANSI Code: R300-25EH25-10L, ISO Code: R300-25EH25-10L, Steel
Alternate Catalog Number R300-25EH25-10L ANSI Code R300-25EH25-10L Catalog Number 6550021 Country of Origin US Gross Weight Per Pack 0.4300 lb ISO Code R300-25EH25-10L Item Group 440 Material Steel Series CoroMill® 300 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Arbor Hole Diameter 0.9527 in Cutting Diameter 0.5905 in Cutting Direction Right Hand Insert Compatibility R300-1032 Insert Style R300..EH Maximum Depth of Cut 0.1968 in Number of Inserts 2 Overall Length 2.3228 in Shank Diameter 0.9527 in Shank Type Coromant EH Through Coolant Yes Axial concentric coolant entry Coromant EH adaptive interface Axial concentric coolant entry 10 bar coolant pressure 40 - 60 deg insert screw clamping interface 25 mm Dia maximum cutting 35 mm overhang 15 deg maximum ramping 15000 r/min 3 Nm torque 20 life cycle state Coromant EH adaptive interface
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | R300-25EH25-10L |
| ANSI Code | R300-25EH25-10L |
| Catalog Number | 6550021 |
| Country of Origin | US |
| Gross Weight Per Pack | 0.4300 lb |
| ISO Code | R300-25EH25-10L |
| Item Group | 440 |
| Material | Steel |
| Series | CoroMill® 300 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Arbor Hole Diameter | 0.9527 in |
| Cutting Diameter | 0.5905 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | R300-1032 |
| Insert Style | R300..EH |
| Maximum Depth of Cut | 0.1968 in |
| Number of Inserts | 2 |
| Overall Length | 2.3228 in |
| Shank Diameter | 0.9527 in |
| Shank Type | Coromant EH |
| Through Coolant | Yes |
| Axial concentric coolant entry |
| Coromant EH adaptive interface |
| Axial concentric coolant entry |
| 10 bar coolant pressure |
| 40 - 60 deg insert screw clamping interface |
| 25 mm Dia maximum cutting |
| 35 mm overhang |
| 15 deg maximum ramping |
| 15000 r/min |
| 3 Nm torque |
| 20 life cycle state |
| Coromant EH adaptive interface |
