Sandvik Coromant

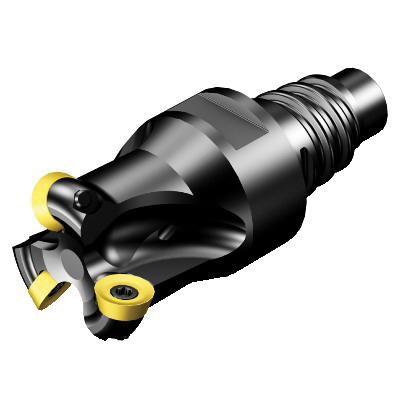

Sandvik Coromant 6550019 CoroMill® 300 Face Milling Cutter, 0.4724 in Cutting, 0.7598 in Shank, 2.1456 in OAL, R300..EH Insert, 0.2362 in Max Depth of Cut
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6550019 CoroMill® 300 Face Milling Cutter, 0.4724 in Cutting, 0.7598 in Shank, 2.1456 in OAL, R300..EH Insert, 0.2362 in Max Depth of Cut
SKU1238897
MFGR #6550019
$/ea
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 300, 0.4724 in Cutting Dia, 2.1456 in Overall Length, 0.2362 in Maximum Depth of Cut, R300..EH Insert, 2 Inserts, Insert Compatibility: R300-1240, 0.7598 in Shank Dia, Right Hand Cutting, ANSI Code: R300-24EH20-12L, ISO Code: R300-24EH20-12L, Steel
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 300, 0.4724 in Cutting Dia, 2.1456 in Overall Length, 0.2362 in Maximum Depth of Cut, R300..EH Insert, 2 Inserts, Insert Compatibility: R300-1240, 0.7598 in Shank Dia, Right Hand Cutting, ANSI Code: R300-24EH20-12L, ISO Code: R300-24EH20-12L, Steel
Alternate Catalog Number R300-24EH20-12L ANSI Code R300-24EH20-12L Catalog Number 6550019 Country of Origin US Gross Weight Per Pack 0.3600 lb ISO Code R300-24EH20-12L Item Group 440 Material Steel Series CoroMill® 300 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Arbor Hole Diameter 0.7598 in Cutting Diameter 0.4724 in Cutting Direction Right Hand Insert Compatibility R300-1240 Insert Style R300..EH Maximum Depth of Cut 0.2362 in Number of Inserts 2 Overall Length 2.1456 in Shank Diameter 0.7598 in Shank Type Coromant EH Through Coolant Yes Axial concentric coolant entry Coromant EH adaptive interface Axial concentric coolant entry 10 bar coolant pressure 40 - 60 deg insert screw clamping interface 24 mm Dia maximum cutting 35 mm overhang 20 deg maximum ramping 15000 r/min 3 Nm torque 20 life cycle state Coromant EH adaptive interface
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | R300-24EH20-12L |
| ANSI Code | R300-24EH20-12L |
| Catalog Number | 6550019 |
| Country of Origin | US |
| Gross Weight Per Pack | 0.3600 lb |
| ISO Code | R300-24EH20-12L |
| Item Group | 440 |
| Material | Steel |
| Series | CoroMill® 300 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Arbor Hole Diameter | 0.7598 in |
| Cutting Diameter | 0.4724 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | R300-1240 |
| Insert Style | R300..EH |
| Maximum Depth of Cut | 0.2362 in |
| Number of Inserts | 2 |
| Overall Length | 2.1456 in |
| Shank Diameter | 0.7598 in |
| Shank Type | Coromant EH |
| Through Coolant | Yes |
| Axial concentric coolant entry |
| Coromant EH adaptive interface |
| Axial concentric coolant entry |
| 10 bar coolant pressure |
| 40 - 60 deg insert screw clamping interface |
| 24 mm Dia maximum cutting |
| 35 mm overhang |
| 20 deg maximum ramping |
| 15000 r/min |
| 3 Nm torque |
| 20 life cycle state |
| Coromant EH adaptive interface |
