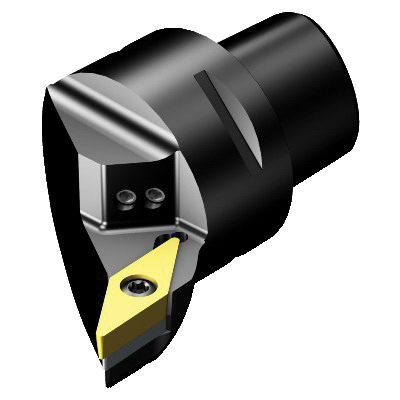

Sandvik Coromant 6537713 CoroTurn® 107 Turning Cutting Unit, 2.559 in, 4.0551 in OAL, Left Hand, VBMT 160408 and VCMT 160408 Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6537713 CoroTurn® 107 Turning Cutting Unit, 2.559 in, 4.0551 in OAL, Left Hand, VBMT 160408 and VCMT 160408 Insert
SKU1250355
MFGR #6537713
$/ea
Sandvik Coromant Turning Cutting Unit, Series: CoroTurn® 107, 2.559 in Head Length/Projection, 4.0551 in Overall Length, V-35 deg Diamond Insert, Insert Compatibility: VBMT 160408 and VCMT 160408, Left Hand Cutting, 1.7716 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Cutting Unit, Series: CoroTurn® 107, 2.559 in Head Length/Projection, 4.0551 in Overall Length, V-35 deg Diamond Insert, Insert Compatibility: VBMT 160408 and VCMT 160408, Left Hand Cutting, 1.7716 in Center to Cutting Edge, Steel
Alternate Catalog Number C6-SVJBL-45065-16HPA Catalog Number 6537713 Country of Origin IN Finish CoroTurn® 107 Gross Weight Per Pack 2.6600 lb Head Length|Projection 2.559 in Insert Style V-35 deg Diamond Item Group 410 Material Steel Overall Length 4.0551 in Series CoroTurn® 107 Type 45 mm Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 1.7716 in Cutting Direction Left Hand Insert Compatibility VBMT 160408 and VCMT 160408 Insert Holding Method Steel Number of Inserts Steel 0 deg body machine side 20 life cycle state 0 deg body workpiece side Axial concentric and radial coolant entry 80 bar coolant 40 - 60 deg insert screw clamping Decentral focused coolant exit with nozzles 63 mm Dia connection 190 mm Dia minimum bore 93 deg cutting edge 0 deg inclination 50 deg ramping 3 Nm torque 3/8 in insert seat size 65 mm maximum overhang -3 deg lead 0 deg rake Bolt and segment clamping adaptive interface ANSI Code: C6-SVJBL-45065-16HPA ISO Code: C6-SVJBL-45065-16HPA
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | C6-SVJBL-45065-16HPA |
| Catalog Number | 6537713 |
| Country of Origin | IN |
| Finish | CoroTurn® 107 |
| Gross Weight Per Pack | 2.6600 lb |
| Head Length|Projection | 2.559 in |
| Insert Style | V-35 deg Diamond |
| Item Group | 410 |
| Material | Steel |
| Overall Length | 4.0551 in |
| Series | CoroTurn® 107 |
| Type | 45 mm |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 1.7716 in |
| Cutting Direction | Left Hand |
| Insert Compatibility | VBMT 160408 and VCMT 160408 |
| Insert Holding Method | Steel |
| Number of Inserts | Steel |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Axial concentric and radial coolant entry |
| 80 bar coolant |
| 40 - 60 deg insert screw clamping |
| Decentral focused coolant exit with nozzles |
| 63 mm Dia connection |
| 190 mm Dia minimum bore |
| 93 deg cutting edge |
| 0 deg inclination |
| 50 deg ramping |
| 3 Nm torque |
| 3/8 in insert seat size |
| 65 mm maximum overhang |
| -3 deg lead |
| 0 deg rake |
| Bolt and segment clamping adaptive interface |
| ANSI Code: C6-SVJBL-45065-16HPA |
| ISO Code: C6-SVJBL-45065-16HPA |
