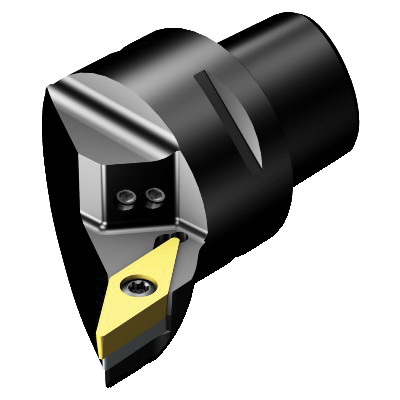

Sandvik Coromant 6537700 CoroTurn® 107 Turning Cutting Unit, 1.9685 in, 2.9133 in OAL, Right Hand, VBMT 110304 and VCMT 110304 Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6537700 CoroTurn® 107 Turning Cutting Unit, 1.9685 in, 2.9133 in OAL, Right Hand, VBMT 110304 and VCMT 110304 Insert
SKU1250004
MFGR #6537700
$/ea
Sandvik Coromant Turning Cutting Unit, Series: CoroTurn® 107, 1.9685 in Head Length/Projection, 2.9133 in Overall Length, V-35 deg Diamond Insert, Insert Compatibility: VBMT 110304 and VCMT 110304, Right Hand Cutting, 1.0629 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Cutting Unit, Series: CoroTurn® 107, 1.9685 in Head Length/Projection, 2.9133 in Overall Length, V-35 deg Diamond Insert, Insert Compatibility: VBMT 110304 and VCMT 110304, Right Hand Cutting, 1.0629 in Center to Cutting Edge, Steel
Alternate Catalog Number C4-SVJBR2705011HPAB1 Catalog Number 6537700 Country of Origin IN Finish CoroTurn® 107 Gross Weight Per Pack 0.8400 lb Head Length|Projection 1.9685 in Insert Style V-35 deg Diamond Item Group 410 Material Steel Overall Length 2.9133 in Series CoroTurn® 107 Type 27 mm Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 1.0629 in Cutting Direction Right Hand Insert Compatibility VBMT 110304 and VCMT 110304 Insert Holding Method Steel Number of Inserts Right Hand 0 deg body machine side 20 life cycle state 0 deg body workpiece side Axial concentric and radial coolant entry 80 bar coolant 40 - 60 deg insert screw clamping Decentral coolant exit with nozzles, adjustable 40 mm Dia connection 140 mm Dia minimum bore 93 deg cutting edge 0 deg inclination 50 deg ramping 0.9 Nm torque 1/4 in insert seat size 50 mm maximum overhang -3 deg lead 0 deg rake Bolt and segment clamping adaptive interface ANSI Code: C4-SVJBR2705011HPAB1 ISO Code: C4-SVJBR2705011HPAB1
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | C4-SVJBR2705011HPAB1 |
| Catalog Number | 6537700 |
| Country of Origin | IN |
| Finish | CoroTurn® 107 |
| Gross Weight Per Pack | 0.8400 lb |
| Head Length|Projection | 1.9685 in |
| Insert Style | V-35 deg Diamond |
| Item Group | 410 |
| Material | Steel |
| Overall Length | 2.9133 in |
| Series | CoroTurn® 107 |
| Type | 27 mm |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 1.0629 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | VBMT 110304 and VCMT 110304 |
| Insert Holding Method | Steel |
| Number of Inserts | Right Hand |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Axial concentric and radial coolant entry |
| 80 bar coolant |
| 40 - 60 deg insert screw clamping |
| Decentral coolant exit with nozzles, adjustable |
| 40 mm Dia connection |
| 140 mm Dia minimum bore |
| 93 deg cutting edge |
| 0 deg inclination |
| 50 deg ramping |
| 0.9 Nm torque |
| 1/4 in insert seat size |
| 50 mm maximum overhang |
| -3 deg lead |
| 0 deg rake |
| Bolt and segment clamping adaptive interface |
| ANSI Code: C4-SVJBR2705011HPAB1 |
| ISO Code: C4-SVJBR2705011HPAB1 |
