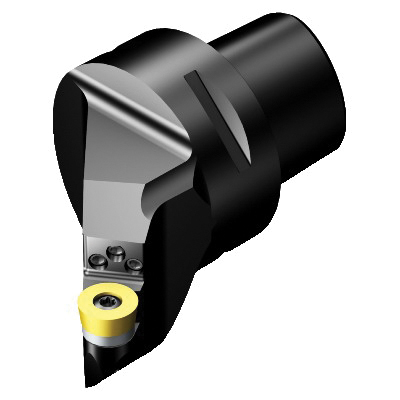

Sandvik Coromant 6537691 CoroTurn® 107 Turning Cutting Unit, 2.559 in, 4.0551 in OAL, Right Hand, Metric RCMT 1204M0 Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6537691 CoroTurn® 107 Turning Cutting Unit, 2.559 in, 4.0551 in OAL, Right Hand, Metric RCMT 1204M0 Insert
SKU1153484
MFGR #6537691
$/ea
Sandvik Coromant Turning Cutting Unit, Series: CoroTurn® 107, 2.559 in Head Length/Projection, 4.0551 in Overall Length, R-Round Insert, Insert Compatibility: Metric RCMT 1204M0, Right Hand Cutting, 1.7716 in Center to Cutting Edge, Steel
Sandvik Coromant Turning Cutting Unit, Series: CoroTurn® 107, 2.559 in Head Length/Projection, 4.0551 in Overall Length, R-Round Insert, Insert Compatibility: Metric RCMT 1204M0, Right Hand Cutting, 1.7716 in Center to Cutting Edge, Steel
Alternate Catalog Number C6-SRSCR-45065-12HPA Catalog Number 6537691 Country of Origin IN Finish CoroTurn® 107 Gross Weight Per Pack 2.6600 lb Head Length|Projection 2.559 in Insert Style R-Round Item Group 410 Material Steel Overall Length 4.0551 in Series CoroTurn® 107 Type 45 mm Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 1.7716 in Cutting Direction Right Hand Insert Compatibility Metric RCMT 1204M0 Insert Holding Method Steel Number of Inserts Metric RCMT 1204M0 0 deg body machine side 20 life cycle state 0 deg body workpiece side Axial concentric and radial coolant entry 80 bar coolant 40 - 60 deg insert screw clamping Decentral focused coolant exit with nozzles 63 mm Dia connection 150 - 190 mm Dia minimum bore 0 deg inclination 45 deg ramping 3 Nm torque 0.472 in insert seat size 65 mm maximum overhang 0 deg rake Bolt and segment clamping adaptive interface ANSI Code: C6-SRSCR-45065-12HPA ISO Code: C6-SRSCR-45065-12HPA
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | C6-SRSCR-45065-12HPA |
| Catalog Number | 6537691 |
| Country of Origin | IN |
| Finish | CoroTurn® 107 |
| Gross Weight Per Pack | 2.6600 lb |
| Head Length|Projection | 2.559 in |
| Insert Style | R-Round |
| Item Group | 410 |
| Material | Steel |
| Overall Length | 4.0551 in |
| Series | CoroTurn® 107 |
| Type | 45 mm |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 1.7716 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | Metric RCMT 1204M0 |
| Insert Holding Method | Steel |
| Number of Inserts | Metric RCMT 1204M0 |
| 0 deg body machine side |
| 20 life cycle state |
| 0 deg body workpiece side |
| Axial concentric and radial coolant entry |
| 80 bar coolant |
| 40 - 60 deg insert screw clamping |
| Decentral focused coolant exit with nozzles |
| 63 mm Dia connection |
| 150 - 190 mm Dia minimum bore |
| 0 deg inclination |
| 45 deg ramping |
| 3 Nm torque |
| 0.472 in insert seat size |
| 65 mm maximum overhang |
| 0 deg rake |
| Bolt and segment clamping adaptive interface |
| ANSI Code: C6-SRSCR-45065-12HPA |
| ISO Code: C6-SRSCR-45065-12HPA |
