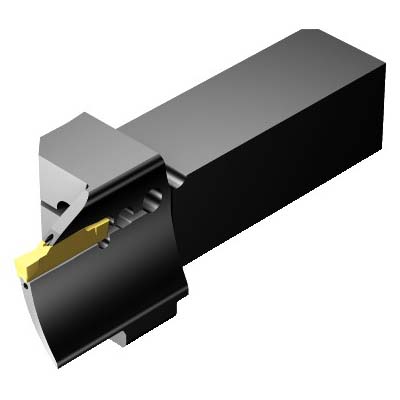

Sandvik Coromant 6537550 CoroCut® 1-2 QS, Right Hand, N123H2-0400-0004-TF Insert, H Insert Seat
Custom_Product_Images_Illustration
Sandvik Coromant 6537550 CoroCut® 1-2 QS, Right Hand, N123H2-0400-0004-TF Insert, H Insert Seat
SKU1253720
MFGR #6537550
$/ea
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2 QS, Insert Compatibility: N123H2-0400-0004-TF, QS-RF123H080C12E-132B, 4.3409 in Overall Length, Rectangular Shank, 3/4 in H x 3/4 in W Shank, H Insert Seat, Right Hand Cutting, 5.1968 in ID x 5.5118 to 9.0551 in OD Groove Width, Steel
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2 QS, Insert Compatibility: N123H2-0400-0004-TF, QS-RF123H080C12E-132B, 4.3409 in Overall Length, Rectangular Shank, 3/4 in H x 3/4 in W Shank, H Insert Seat, Right Hand Cutting, 5.1968 in ID x 5.5118 to 9.0551 in OD Groove Width, Steel
Alternate Catalog Number QS-RF123H080C12E-132B Catalog Number 6537550 Country of Origin SE Geometry QS-RF123H080C12E-132B Gross Weight Per Pack 0.6000 lb Head Length Right Hand Item Group 480 Material Steel Series CoroCut® 1-2 QS Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Clamp Type CoroCut® 1-2 QS Cutting Direction Right Hand Groove Width 5.1968 in ID x 5.5118 to 9.0551 in OD Insert Compatibility N123H2-0400-0004-TF Insert Seat Size H Overall Length 4.3409 in Screw Type 3/4 in H x 3/4 in W Shank Size 3/4 in H x 3/4 in W Shank Type Rectangular Type CoroCut® 1-2 QS 0 deg body workpiece side 20 life cycle state 20.32 mm D maximum cutting Axial concentric and radial entry coolant 150 bar coolant Axial inclined coolant exit 0 deg inclination 0 deg rake orthogonal 90 deg cutting edge 60.34 mm minimum overhang 17.55 mm width to cutting item reference point 2 axial groove support direction 19.05 mm W shank 19.55 mm W functiona ANSI Code: QS-RF123H080C12E-132B ISO Code: QS-RF123H080C12E-132B
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QS-RF123H080C12E-132B |
| Catalog Number | 6537550 |
| Country of Origin | SE |
| Geometry | QS-RF123H080C12E-132B |
| Gross Weight Per Pack | 0.6000 lb |
| Head Length | Right Hand |
| Item Group | 480 |
| Material | Steel |
| Series | CoroCut® 1-2 QS |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Clamp Type | CoroCut® 1-2 QS |
| Cutting Direction | Right Hand |
| Groove Width | 5.1968 in ID x 5.5118 to 9.0551 in OD |
| Insert Compatibility | N123H2-0400-0004-TF |
| Insert Seat Size | H |
| Overall Length | 4.3409 in |
| Screw Type | 3/4 in H x 3/4 in W |
| Shank Size | 3/4 in H x 3/4 in W |
| Shank Type | Rectangular |
| Type | CoroCut® 1-2 QS |
| 0 deg body workpiece side |
| 20 life cycle state |
| 20.32 mm D maximum cutting |
| Axial concentric and radial entry coolant |
| 150 bar coolant |
| Axial inclined coolant exit |
| 0 deg inclination |
| 0 deg rake orthogonal |
| 90 deg cutting edge |
| 60.34 mm minimum overhang |
| 17.55 mm width to cutting item reference point |
| 2 axial groove support direction |
| 19.05 mm W shank |
| 19.55 mm W functiona |
| ANSI Code: QS-RF123H080C12E-132B |
| ISO Code: QS-RF123H080C12E-132B |
