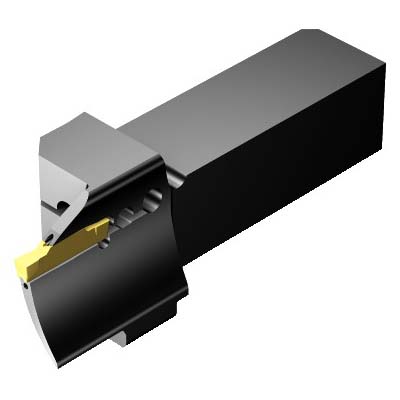

Sandvik Coromant 6537533 CoroCut® 1-2 QS, Left Hand, N123L2-0800- CM Insert, L Insert Seat
Custom_Product_Images_Illustration
Sandvik Coromant 6537533 CoroCut® 1-2 QS, Left Hand, N123L2-0800- CM Insert, L Insert Seat
SKU1253690
MFGR #6537533
$/ea
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2 QS, Insert Compatibility: N123L2-0800- CM, QS-LF123L110C16E-140B, 5.0941 in Overall Length, Rectangular Shank, 1 in H x 1 in W Shank, L Insert Seat, Left Hand Cutting, 5.5118 in ID x 6.1417 to 15.748 in OD Groove Width, Steel
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2 QS, Insert Compatibility: N123L2-0800- CM, QS-LF123L110C16E-140B, 5.0941 in Overall Length, Rectangular Shank, 1 in H x 1 in W Shank, L Insert Seat, Left Hand Cutting, 5.5118 in ID x 6.1417 to 15.748 in OD Groove Width, Steel
Alternate Catalog Number QS-LF123L110C16E-140B Catalog Number 6537533 Country of Origin SE Geometry QS-LF123L110C16E-140B Gross Weight Per Pack 1.1400 lb Head Length 140 mm ID x 156 to 400 mm OD Item Group 480 Material Steel Series CoroCut® 1-2 QS Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Clamp Type CoroCut® 1-2 QS Cutting Direction Left Hand Groove Width 5.5118 in ID x 6.1417 to 15.748 in OD Insert Compatibility N123L2-0800- CM Insert Seat Size L Overall Length 5.0941 in Screw Type 1 in H x 1 in W Shank Size 1 in H x 1 in W Shank Type Rectangular Type 1 in H x 1 in W 0 deg body workpiece side 20 life cycle state 27.94 mm D maximum cutting Axial concentric and radial entry coolant 150 bar coolant Axial inclined coolant exit 0 deg inclination 0 deg rake orthogonal 90 deg cutting edge 70.79 mm minimum overhang 21.9 mm width to cutting item reference point 2 axial groove support direction 25.4 mm W shank 25.9 mm W functiona ANSI Code: QS-LF123L110C16E-140B ISO Code: QS-LF123L110C16E-140B
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QS-LF123L110C16E-140B |
| Catalog Number | 6537533 |
| Country of Origin | SE |
| Geometry | QS-LF123L110C16E-140B |
| Gross Weight Per Pack | 1.1400 lb |
| Head Length | 140 mm ID x 156 to 400 mm OD |
| Item Group | 480 |
| Material | Steel |
| Series | CoroCut® 1-2 QS |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Clamp Type | CoroCut® 1-2 QS |
| Cutting Direction | Left Hand |
| Groove Width | 5.5118 in ID x 6.1417 to 15.748 in OD |
| Insert Compatibility | N123L2-0800- CM |
| Insert Seat Size | L |
| Overall Length | 5.0941 in |
| Screw Type | 1 in H x 1 in W |
| Shank Size | 1 in H x 1 in W |
| Shank Type | Rectangular |
| Type | 1 in H x 1 in W |
| 0 deg body workpiece side |
| 20 life cycle state |
| 27.94 mm D maximum cutting |
| Axial concentric and radial entry coolant |
| 150 bar coolant |
| Axial inclined coolant exit |
| 0 deg inclination |
| 0 deg rake orthogonal |
| 90 deg cutting edge |
| 70.79 mm minimum overhang |
| 21.9 mm width to cutting item reference point |
| 2 axial groove support direction |
| 25.4 mm W shank |
| 25.9 mm W functiona |
| ANSI Code: QS-LF123L110C16E-140B |
| ISO Code: QS-LF123L110C16E-140B |
