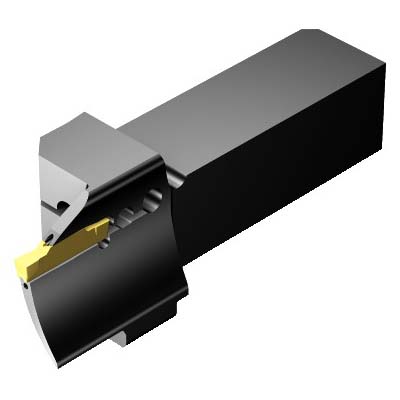

Sandvik Coromant 6537509 CoroCut® 1-2 QS, Left Hand, N123G2-0300-0003-TF Insert, G Insert Seat
Custom_Product_Images_Illustration
Sandvik Coromant 6537509 CoroCut® 1-2 QS, Left Hand, N123G2-0300-0003-TF Insert, G Insert Seat
SKU1238279
MFGR #6537509
$/ea
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2 QS, Insert Compatibility: N123G2-0300-0003-TF, QS-LF123G080C16E-090B, 4.8118 in Overall Length, Rectangular Shank, 1 in H x 1 in W Shank, G Insert Seat, Left Hand Cutting, 3.5433 in ID x 3.7795 to 12.3622 in OD Groove Width, Steel
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2 QS, Insert Compatibility: N123G2-0300-0003-TF, QS-LF123G080C16E-090B, 4.8118 in Overall Length, Rectangular Shank, 1 in H x 1 in W Shank, G Insert Seat, Left Hand Cutting, 3.5433 in ID x 3.7795 to 12.3622 in OD Groove Width, Steel
Alternate Catalog Number QS-LF123G080C16E-090B Catalog Number 6537509 Country of Origin SE Gross Weight Per Pack 2.2000 lb Item Group 480 Material Steel Maximum Workpiece Diameter 6.299 in Minimum Hole Diameter 3.543 in Series CoroCut® 1-2 QS Through Coolant [Yes|No] Yes Toolholder Type QS-LF123G080C16E Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Left Hand Insert Compatibility N123G2-0300-0003-TF Insert Seat Size G Overall Length 4.812 in Shank Size 1 in H x 1 in W Shank Type Rectangular Versatile parting and grooving Cost efficiency with two edges Secure and efficient machining Axial concentric and radial entry coolant 150 bar coolant Axial inclined coolant exit 0 deg inclination 0 deg rake orthogonal 90 deg cutting edge 63.62 mm minimum overhang 24.4 mm width to cutting item reference point 2 axial groove support direction 25.4 mm W shank 25.9 mm W functiona ANSI Code: QS-LF123G080C16E-090B ISO Code: QS-LF123G080C16E-090B
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QS-LF123G080C16E-090B |
| Catalog Number | 6537509 |
| Country of Origin | SE |
| Gross Weight Per Pack | 2.2000 lb |
| Item Group | 480 |
| Material | Steel |
| Maximum Workpiece Diameter | 6.299 in |
| Minimum Hole Diameter | 3.543 in |
| Series | CoroCut® 1-2 QS |
| Through Coolant [Yes|No] | Yes |
| Toolholder Type | QS-LF123G080C16E |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Left Hand |
| Insert Compatibility | N123G2-0300-0003-TF |
| Insert Seat Size | G |
| Overall Length | 4.812 in |
| Shank Size | 1 in H x 1 in W |
| Shank Type | Rectangular |
| Versatile parting and grooving |
| Cost efficiency with two edges |
| Secure and efficient machining |
| Axial concentric and radial entry coolant |
| 150 bar coolant |
| Axial inclined coolant exit |
| 0 deg inclination |
| 0 deg rake orthogonal |
| 90 deg cutting edge |
| 63.62 mm minimum overhang |
| 24.4 mm width to cutting item reference point |
| 2 axial groove support direction |
| 25.4 mm W shank |
| 25.9 mm W functiona |
| ANSI Code: QS-LF123G080C16E-090B |
| ISO Code: QS-LF123G080C16E-090B |
