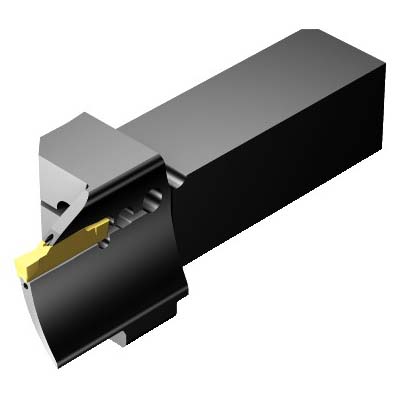

Sandvik Coromant 6537503 CoroCut® 1-2 QS, Left Hand, N123G2-0300-0003-TF Insert, G Insert Seat
Custom_Product_Images_Illustration
Sandvik Coromant 6537503 CoroCut® 1-2 QS, Left Hand, N123G2-0300-0003-TF Insert, G Insert Seat
SKU1253687
MFGR #6537503
$/ea
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2 QS, Insert Compatibility: N123G2-0300-0003-TF, QS-LF123G055C12E-067B, 3.9712 in Overall Length, Rectangular Shank, 3/4 in H x 3/4 in W Shank, G Insert Seat, Left Hand Cutting, 2.6378 in ID x 2.874 to 3.937 in OD Groove Width, Steel
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2 QS, Insert Compatibility: N123G2-0300-0003-TF, QS-LF123G055C12E-067B, 3.9712 in Overall Length, Rectangular Shank, 3/4 in H x 3/4 in W Shank, G Insert Seat, Left Hand Cutting, 2.6378 in ID x 2.874 to 3.937 in OD Groove Width, Steel
Alternate Catalog Number QS-LF123G055C12E-067B Catalog Number 6537503 Country of Origin SE Geometry QS-LF123G055C12E-067B Gross Weight Per Pack 0.5700 lb Head Length G Item Group 480 Material Steel Maximum Workpiece Diameter 3.937 Minimum Hole Diameter 2.638 Series CoroCut® 1-2 QS Toolholder Type QS-LF123G055C12E Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Clamp Type CoroCut® 1-2 QS Cutting Direction Left Hand Groove Width 2.6378 in ID x 2.874 to 3.937 in OD Insert Compatibility N123G2-0300-0003-TF Insert Seat Size G Overall Length 3.9712 in Screw Type 3/4 in H x 3/4 in W Shank Size 3/4 in H x 3/4 in W Shank Type Rectangular Type Steel 0 deg body workpiece side 20 life cycle state 13.97 mm D maximum cutting Axial concentric and radial entry coolant 150 bar coolant Axial inclined coolant exit 0 deg inclination 0 deg rake orthogonal 90 deg cutting edge 56.23 mm minimum overhang 18.05 mm width to cutting item reference point 2 axial groove support direction 19.05 mm W shank 19.55 mm W functiona ANSI Code: QS-LF123G055C12E-067B ISO Code: QS-LF123G055C12E-067B
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QS-LF123G055C12E-067B |
| Catalog Number | 6537503 |
| Country of Origin | SE |
| Geometry | QS-LF123G055C12E-067B |
| Gross Weight Per Pack | 0.5700 lb |
| Head Length | G |
| Item Group | 480 |
| Material | Steel |
| Maximum Workpiece Diameter | 3.937 |
| Minimum Hole Diameter | 2.638 |
| Series | CoroCut® 1-2 QS |
| Toolholder Type | QS-LF123G055C12E |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Clamp Type | CoroCut® 1-2 QS |
| Cutting Direction | Left Hand |
| Groove Width | 2.6378 in ID x 2.874 to 3.937 in OD |
| Insert Compatibility | N123G2-0300-0003-TF |
| Insert Seat Size | G |
| Overall Length | 3.9712 in |
| Screw Type | 3/4 in H x 3/4 in W |
| Shank Size | 3/4 in H x 3/4 in W |
| Shank Type | Rectangular |
| Type | Steel |
| 0 deg body workpiece side |
| 20 life cycle state |
| 13.97 mm D maximum cutting |
| Axial concentric and radial entry coolant |
| 150 bar coolant |
| Axial inclined coolant exit |
| 0 deg inclination |
| 0 deg rake orthogonal |
| 90 deg cutting edge |
| 56.23 mm minimum overhang |
| 18.05 mm width to cutting item reference point |
| 2 axial groove support direction |
| 19.05 mm W shank |
| 19.55 mm W functiona |
| ANSI Code: QS-LF123G055C12E-067B |
| ISO Code: QS-LF123G055C12E-067B |
