Sandvik Coromant 6537481 CoroCut® 1-2 QS, Right Hand, N123J2-0500-0004-TF Insert, J Insert Seat

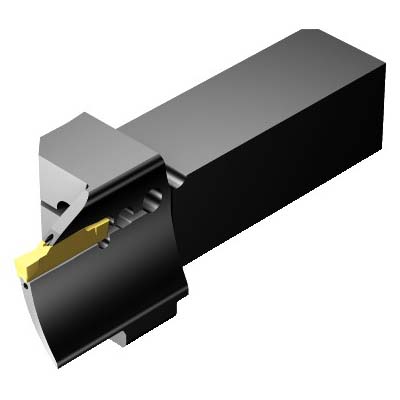

Custom_Product_Images_Illustration
Sandvik Coromant 6537481 CoroCut® 1-2 QS, Right Hand, N123J2-0500-0004-TF Insert, J Insert Seat
SKU1253562
MFGR #6537481
$/ea
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2 QS, Insert Compatibility: N123J2-0500-0004-TF, QS-RF123J25C2525E-120B, 4.9929 in Overall Length, Rectangular Shank, 0.9842 in H x 0.9842 in W Shank, J Insert Seat, Right Hand Cutting, 4.7244 in ID x 5.1181 to 7.0866 in OD Groove Width, Steel
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2 QS, Insert Compatibility: N123J2-0500-0004-TF, QS-RF123J25C2525E-120B, 4.9929 in Overall Length, Rectangular Shank, 0.9842 in H x 0.9842 in W Shank, J Insert Seat, Right Hand Cutting, 4.7244 in ID x 5.1181 to 7.0866 in OD Groove Width, Steel
Alternate Catalog Number QS-RF123J25C2525E-120B Catalog Number 6537481 Country of Origin SE Geometry QS-RF123J25C2525E-120B Gross Weight Per Pack 1.0900 lb Head Length Steel Item Group 480 Material Steel Maximum Workpiece Diameter 7.087 Minimum Hole Diameter 4.724 Series CoroCut® 1-2 QS Toolholder Type QS-RF123J25C2525E Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Clamp Type CoroCut® 1-2 QS Cutting Direction Right Hand Groove Width 4.7244 in ID x 5.1181 to 7.0866 in OD Insert Compatibility N123J2-0500-0004-TF Insert Seat Size J Overall Length 4.9929 in Screw Type 25 mm H x 25 mm W Shank Size 0.9842 in H x 0.9842 in W Shank Type Rectangular Type Rectangular 0 deg body workpiece side 20 life cycle state 25 mm D maximum cutting Axial concentric and radial entry coolant 150 bar coolant Axial inclined coolant exit 0 deg inclination 0 deg rake orthogonal 90 deg cutting edge 67.821 mm minimum overhang 23 mm width to cutting item reference point 2 axial groove support direction 25 mm W shank 25.5 mm W functiona ANSI Code: QS-RF123J25C2525E-120B ISO Code: QS-RF123J25C2525E-120B
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QS-RF123J25C2525E-120B |
| Catalog Number | 6537481 |
| Country of Origin | SE |
| Geometry | QS-RF123J25C2525E-120B |
| Gross Weight Per Pack | 1.0900 lb |
| Head Length | Steel |
| Item Group | 480 |
| Material | Steel |
| Maximum Workpiece Diameter | 7.087 |
| Minimum Hole Diameter | 4.724 |
| Series | CoroCut® 1-2 QS |
| Toolholder Type | QS-RF123J25C2525E |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Clamp Type | CoroCut® 1-2 QS |
| Cutting Direction | Right Hand |
| Groove Width | 4.7244 in ID x 5.1181 to 7.0866 in OD |
| Insert Compatibility | N123J2-0500-0004-TF |
| Insert Seat Size | J |
| Overall Length | 4.9929 in |
| Screw Type | 25 mm H x 25 mm W |
| Shank Size | 0.9842 in H x 0.9842 in W |
| Shank Type | Rectangular |
| Type | Rectangular |
| 0 deg body workpiece side |
| 20 life cycle state |
| 25 mm D maximum cutting |
| Axial concentric and radial entry coolant |
| 150 bar coolant |
| Axial inclined coolant exit |
| 0 deg inclination |
| 0 deg rake orthogonal |
| 90 deg cutting edge |
| 67.821 mm minimum overhang |
| 23 mm width to cutting item reference point |
| 2 axial groove support direction |
| 25 mm W shank |
| 25.5 mm W functiona |
| ANSI Code: QS-RF123J25C2525E-120B |
| ISO Code: QS-RF123J25C2525E-120B |
