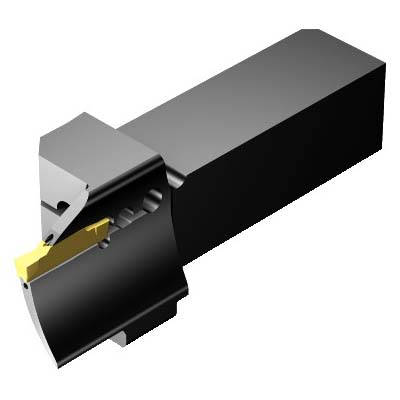

Sandvik Coromant 6537473 CoroCut® 1-2 QS, Right Hand, N123H2-0400-0004-TF Insert, H Insert Seat
Custom_Product_Images_Illustration
Sandvik Coromant 6537473 CoroCut® 1-2 QS, Right Hand, N123H2-0400-0004-TF Insert, H Insert Seat
SKU1239573
MFGR #6537473
$/ea
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2 QS, Insert Compatibility: N123H2-0400-0004-TF, QS-RF123H25C2525E-064B, 4.9929 in Overall Length, Rectangular Shank, 0.9842 in H x 0.9842 in W Shank, H Insert Seat, Right Hand Cutting, 2.5196 in ID x 2.8346 to 3.937 in OD Groove Width, Steel
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2 QS, Insert Compatibility: N123H2-0400-0004-TF, QS-RF123H25C2525E-064B, 4.9929 in Overall Length, Rectangular Shank, 0.9842 in H x 0.9842 in W Shank, H Insert Seat, Right Hand Cutting, 2.5196 in ID x 2.8346 to 3.937 in OD Groove Width, Steel
Alternate Catalog Number QS-RF123H25C2525E-064B Catalog Number 6537473 Country of Origin SE Gross Weight Per Pack 1.2600 lb Item Group 480 Material Steel Maximum Workpiece Diameter 3.937 in Minimum Hole Diameter 2.52 in Series CoroCut® 1-2 QS Through Coolant [Yes|No] Yes Toolholder Type QS-RF123H25C2525E Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility N123H2-0400-0004-TF Insert Seat Size H Overall Length 4.993 in Shank Size 0.984 in H x 0.984 in W Shank Type Rectangular Versatile parting and grooving Cost efficiency with two edges Secure and efficient machining Axial concentric and radial entry coolant 150 bar coolant Axial inclined coolant exit 0 deg inclination 0 deg rake orthogonal 90 deg cutting edge 67.821 mm minimum overhang 23.5 mm width to cutting item reference point 2 axial groove support direction 25 mm W shank 25.5 mm W functiona ANSI Code: QS-RF123H25C2525E-064B ISO Code: QS-RF123H25C2525E-064B
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QS-RF123H25C2525E-064B |
| Catalog Number | 6537473 |
| Country of Origin | SE |
| Gross Weight Per Pack | 1.2600 lb |
| Item Group | 480 |
| Material | Steel |
| Maximum Workpiece Diameter | 3.937 in |
| Minimum Hole Diameter | 2.52 in |
| Series | CoroCut® 1-2 QS |
| Through Coolant [Yes|No] | Yes |
| Toolholder Type | QS-RF123H25C2525E |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | N123H2-0400-0004-TF |
| Insert Seat Size | H |
| Overall Length | 4.993 in |
| Shank Size | 0.984 in H x 0.984 in W |
| Shank Type | Rectangular |
| Versatile parting and grooving |
| Cost efficiency with two edges |
| Secure and efficient machining |
| Axial concentric and radial entry coolant |
| 150 bar coolant |
| Axial inclined coolant exit |
| 0 deg inclination |
| 0 deg rake orthogonal |
| 90 deg cutting edge |
| 67.821 mm minimum overhang |
| 23.5 mm width to cutting item reference point |
| 2 axial groove support direction |
| 25 mm W shank |
| 25.5 mm W functiona |
| ANSI Code: QS-RF123H25C2525E-064B |
| ISO Code: QS-RF123H25C2525E-064B |
