Sandvik Coromant 6537470 CoroCut® 1-2 QS, Right Hand, N123H2-0400-0004-TF Insert, H Insert Seat

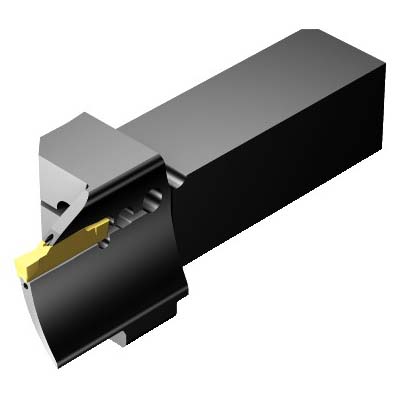

Custom_Product_Images_Illustration
Sandvik Coromant 6537470 CoroCut® 1-2 QS, Right Hand, N123H2-0400-0004-TF Insert, H Insert Seat
SKU1253710
MFGR #6537470
$/ea
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2 QS, Insert Compatibility: N123H2-0400-0004-TF, QS-RF123H20C2020E-064B, 4.2889 in Overall Length, Rectangular Shank, 0.7874 in H x 0.7874 in W Shank, H Insert Seat, Right Hand Cutting, 2.5196 in ID x 2.8346 to 3.937 in OD Groove Width, Steel
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2 QS, Insert Compatibility: N123H2-0400-0004-TF, QS-RF123H20C2020E-064B, 4.2889 in Overall Length, Rectangular Shank, 0.7874 in H x 0.7874 in W Shank, H Insert Seat, Right Hand Cutting, 2.5196 in ID x 2.8346 to 3.937 in OD Groove Width, Steel
Alternate Catalog Number QS-RF123H20C2020E-064B Catalog Number 6537470 Country of Origin SE Geometry QS-RF123H20C2020E-064B Gross Weight Per Pack 0.6400 lb Head Length 20 mm H x 20 mm W Item Group 480 Material Steel Maximum Workpiece Diameter 3.937 Minimum Hole Diameter 2.52 Series CoroCut® 1-2 QS Toolholder Type QS-RF123H20C2020E Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Clamp Type CoroCut® 1-2 QS Cutting Direction Right Hand Groove Width 2.5196 in ID x 2.8346 to 3.937 in OD Insert Compatibility N123H2-0400-0004-TF Insert Seat Size H Overall Length 4.2889 in Screw Type 20 mm H x 20 mm W Shank Size 0.7874 in H x 0.7874 in W Shank Type Rectangular Type Right Hand 0 deg body workpiece side 20 life cycle state 20 mm D maximum cutting Axial concentric and radial entry coolant 150 bar coolant Axial inclined coolant exit 0 deg inclination 0 deg rake orthogonal 90 deg cutting edge 59.97 mm minimum overhang 18.5 mm width to cutting item reference point 2 axial groove support direction 20 mm W shank 20.5 mm W functiona ANSI Code: QS-RF123H20C2020E-064B ISO Code: QS-RF123H20C2020E-064B
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QS-RF123H20C2020E-064B |
| Catalog Number | 6537470 |
| Country of Origin | SE |
| Geometry | QS-RF123H20C2020E-064B |
| Gross Weight Per Pack | 0.6400 lb |
| Head Length | 20 mm H x 20 mm W |
| Item Group | 480 |
| Material | Steel |
| Maximum Workpiece Diameter | 3.937 |
| Minimum Hole Diameter | 2.52 |
| Series | CoroCut® 1-2 QS |
| Toolholder Type | QS-RF123H20C2020E |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Clamp Type | CoroCut® 1-2 QS |
| Cutting Direction | Right Hand |
| Groove Width | 2.5196 in ID x 2.8346 to 3.937 in OD |
| Insert Compatibility | N123H2-0400-0004-TF |
| Insert Seat Size | H |
| Overall Length | 4.2889 in |
| Screw Type | 20 mm H x 20 mm W |
| Shank Size | 0.7874 in H x 0.7874 in W |
| Shank Type | Rectangular |
| Type | Right Hand |
| 0 deg body workpiece side |
| 20 life cycle state |
| 20 mm D maximum cutting |
| Axial concentric and radial entry coolant |
| 150 bar coolant |
| Axial inclined coolant exit |
| 0 deg inclination |
| 0 deg rake orthogonal |
| 90 deg cutting edge |
| 59.97 mm minimum overhang |
| 18.5 mm width to cutting item reference point |
| 2 axial groove support direction |
| 20 mm W shank |
| 20.5 mm W functiona |
| ANSI Code: QS-RF123H20C2020E-064B |
| ISO Code: QS-RF123H20C2020E-064B |
