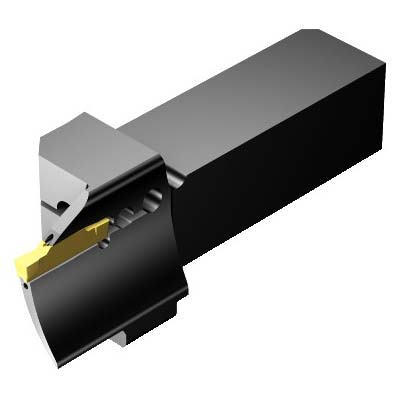

Sandvik Coromant 6537438 CoroCut® 1-2 QS, Left Hand, N123H2-0400-0004-TF Insert, H Insert Seat
Custom_Product_Images_Illustration
Sandvik Coromant 6537438 CoroCut® 1-2 QS, Left Hand, N123H2-0400-0004-TF Insert, H Insert Seat
SKU1238196
MFGR #6537438
$/ea
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2 QS, Insert Compatibility: N123H2-0400-0004-TF, QS-LF123H25C2525E-220B, 4.9929 in Overall Length, Rectangular Shank, 0.9842 in H x 0.9842 in W Shank, H Insert Seat, Left Hand Cutting, 8.6614 in ID x 8.9763 to 19.685 in OD Groove Width, Steel
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2 QS, Insert Compatibility: N123H2-0400-0004-TF, QS-LF123H25C2525E-220B, 4.9929 in Overall Length, Rectangular Shank, 0.9842 in H x 0.9842 in W Shank, H Insert Seat, Left Hand Cutting, 8.6614 in ID x 8.9763 to 19.685 in OD Groove Width, Steel
Alternate Catalog Number QS-LF123H25C2525E-220B Catalog Number 6537438 Country of Origin SE Gross Weight Per Pack 1.3100 lb Item Group 480 Material Steel Maximum Workpiece Diameter 19.685 in Minimum Hole Diameter 8.661 in Series CoroCut® 1-2 QS Through Coolant [Yes|No] Yes Toolholder Type QS-LF123H25C2525E Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Left Hand Insert Compatibility N123H2-0400-0004-TF Insert Seat Size H Overall Length 4.993 in Shank Size 0.984 in H x 0.984 in W Shank Type Rectangular Versatile parting and grooving Cost efficiency with two edges Secure and efficient machining Axial concentric and radial entry coolant 150 bar coolant Axial inclined coolant exit 0 deg inclination 0 deg rake orthogonal 90 deg cutting edge 67.821 mm minimum overhang 23.5 mm width to cutting item reference point 2 axial groove support direction 25 mm W shank 25.5 mm W functiona ANSI Code: QS-LF123H25C2525E-220B ISO Code: QS-LF123H25C2525E-220B
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QS-LF123H25C2525E-220B |
| Catalog Number | 6537438 |
| Country of Origin | SE |
| Gross Weight Per Pack | 1.3100 lb |
| Item Group | 480 |
| Material | Steel |
| Maximum Workpiece Diameter | 19.685 in |
| Minimum Hole Diameter | 8.661 in |
| Series | CoroCut® 1-2 QS |
| Through Coolant [Yes|No] | Yes |
| Toolholder Type | QS-LF123H25C2525E |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Left Hand |
| Insert Compatibility | N123H2-0400-0004-TF |
| Insert Seat Size | H |
| Overall Length | 4.993 in |
| Shank Size | 0.984 in H x 0.984 in W |
| Shank Type | Rectangular |
| Versatile parting and grooving |
| Cost efficiency with two edges |
| Secure and efficient machining |
| Axial concentric and radial entry coolant |
| 150 bar coolant |
| Axial inclined coolant exit |
| 0 deg inclination |
| 0 deg rake orthogonal |
| 90 deg cutting edge |
| 67.821 mm minimum overhang |
| 23.5 mm width to cutting item reference point |
| 2 axial groove support direction |
| 25 mm W shank |
| 25.5 mm W functiona |
| ANSI Code: QS-LF123H25C2525E-220B |
| ISO Code: QS-LF123H25C2525E-220B |
