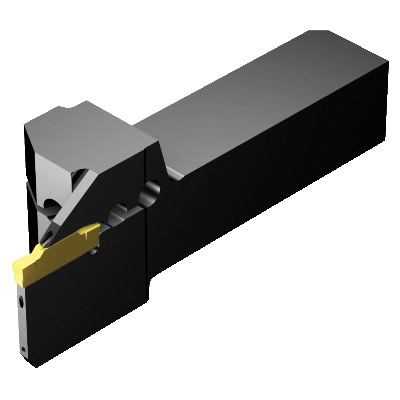

Sandvik Coromant 6537404 CoroCut® 1-2 QS Indexable Shank Tool, N123H2-0400-0004-TF insert, H Insert Seat, Left Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6537404 CoroCut® 1-2 QS Indexable Shank Tool, N123H2-0400-0004-TF insert, H Insert Seat, Left Hand
SKU1238221
MFGR #6537404
$/ea
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® 1-2 QS, Insert Compatibility: N123H2-0400-0004-TF, QS-LF123H080C12E, 4.2535 in Overall Length, Rectangular Shank, 3/4 in H x 3/4 in W Shank, H Insert Seat, Left Hand Cutting, 0.8 in Maximum Depth of Cut, Steel
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® 1-2 QS, Insert Compatibility: N123H2-0400-0004-TF, QS-LF123H080C12E, 4.2535 in Overall Length, Rectangular Shank, 3/4 in H x 3/4 in W Shank, H Insert Seat, Left Hand Cutting, 0.8 in Maximum Depth of Cut, Steel
Alternate Catalog Number QS-LF123H080C12E Catalog Number 6537404 Country of Origin SE Gross Weight Per Pack 2.2000 lb Head Length 2.521 in Internal or External External Item Group 480 Material Steel Series CoroCut® 1-2 QS Toolholder Style QS-R/LF123..C..E Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Left Hand Insert Compatibility N123H2-0400-0004-TF Insert Seat Size H Maximum Depth of Cut 0.8 in Overall Length 4.254 in Shank Size 3/4 in H x 3/4 in W Shank Type Rectangular 0 deg body workpiece side 20 life cycle state Axial concentric and radial entry coolant 150 bar coolant Axial inclined coolant exit 90 deg cutting edge 64.041 mm minimum overhang 0 deg inclination 0 deg rake ANSI Code: QS-LF123H080C12E ISO Code: QS-LF123H080C12E
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QS-LF123H080C12E |
| Catalog Number | 6537404 |
| Country of Origin | SE |
| Gross Weight Per Pack | 2.2000 lb |
| Head Length | 2.521 in |
| Internal or External | External |
| Item Group | 480 |
| Material | Steel |
| Series | CoroCut® 1-2 QS |
| Toolholder Style | QS-R/LF123..C..E |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Left Hand |
| Insert Compatibility | N123H2-0400-0004-TF |
| Insert Seat Size | H |
| Maximum Depth of Cut | 0.8 in |
| Overall Length | 4.254 in |
| Shank Size | 3/4 in H x 3/4 in W |
| Shank Type | Rectangular |
| 0 deg body workpiece side |
| 20 life cycle state |
| Axial concentric and radial entry coolant |
| 150 bar coolant |
| Axial inclined coolant exit |
| 90 deg cutting edge |
| 64.041 mm minimum overhang |
| 0 deg inclination |
| 0 deg rake |
| ANSI Code: QS-LF123H080C12E |
| ISO Code: QS-LF123H080C12E |
