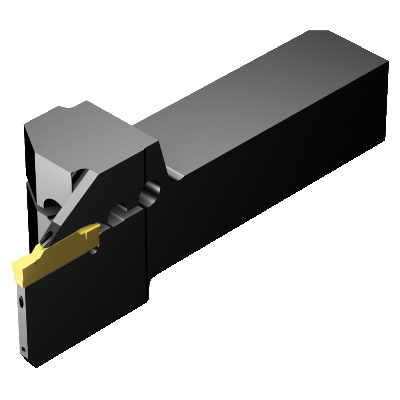

Sandvik Coromant 6537349 CoroCut® 1-2 QS Indexable Shank Tool, N123H2-0400-0004-TF insert, H Insert Seat, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6537349 CoroCut® 1-2 QS Indexable Shank Tool, N123H2-0400-0004-TF insert, H Insert Seat, Right Hand
SKU1239459
MFGR #6537349
Your Cost: $510.85/ea
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® 1-2 QS, Insert Compatibility: N123H2-0400-0004-TF, QS-RF123H20C2525E, 4.7567 in Overall Length, Rectangular Shank, 0.9842 in H x 0.9842 in W Shank, H Insert Seat, Right Hand Cutting, 0.7874 in Maximum Depth of Cut, Steel
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® 1-2 QS, Insert Compatibility: N123H2-0400-0004-TF, QS-RF123H20C2525E, 4.7567 in Overall Length, Rectangular Shank, 0.9842 in H x 0.9842 in W Shank, H Insert Seat, Right Hand Cutting, 0.7874 in Maximum Depth of Cut, Steel
Alternate Catalog Number QS-RF123H20C2525E Catalog Number 6537349 Country of Origin SE Gross Weight Per Pack 1.3000 lb Head Length 61.821 mm Internal or External External Item Group 480 Material Steel Series CoroCut® 1-2 QS Toolholder Style QS-R/LF123..C..E Toolholder Type QS-R/LF123..C..E Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility N123H2-0400-0004-TF Insert Seat Size H Maximum Depth of Cut 20 mm Overall Length 120.821 mm Shank Size 25 mm H x 25 mm W Shank Type Rectangular 0 deg body workpiece side 20 life cycle state Axial concentric and radial entry coolant 150 bar coolant Axial inclined coolant exit 90 deg cutting edge 61.821 mm minimum overhang 0 deg inclination 0 deg rake ANSI Code: QS-RF123H20C2525E ISO Code: QS-RF123H20C2525E
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QS-RF123H20C2525E |
| Catalog Number | 6537349 |
| Country of Origin | SE |
| Gross Weight Per Pack | 1.3000 lb |
| Head Length | 61.821 mm |
| Internal or External | External |
| Item Group | 480 |
| Material | Steel |
| Series | CoroCut® 1-2 QS |
| Toolholder Style | QS-R/LF123..C..E |
| Toolholder Type | QS-R/LF123..C..E |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | N123H2-0400-0004-TF |
| Insert Seat Size | H |
| Maximum Depth of Cut | 20 mm |
| Overall Length | 120.821 mm |
| Shank Size | 25 mm H x 25 mm W |
| Shank Type | Rectangular |
| 0 deg body workpiece side |
| 20 life cycle state |
| Axial concentric and radial entry coolant |
| 150 bar coolant |
| Axial inclined coolant exit |
| 90 deg cutting edge |
| 61.821 mm minimum overhang |
| 0 deg inclination |
| 0 deg rake |
| ANSI Code: QS-RF123H20C2525E |
| ISO Code: QS-RF123H20C2525E |
