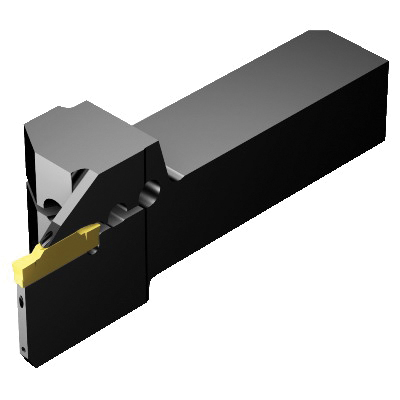

Sandvik Coromant 6537344 CoroCut® 1-2 QS Indexable Shank Tool, N123G2-0300-0003-TF insert, G Insert Seat, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6537344 CoroCut® 1-2 QS Indexable Shank Tool, N123G2-0300-0003-TF insert, G Insert Seat, Right Hand
SKU1239495
MFGR #6537344
$/ea
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® 1-2 QS, Insert Compatibility: N123G2-0300-0003-TF, QS-RF123G15C2525E, 4.5709 in Overall Length, Rectangular Shank, 0.9842 in H x 0.9842 in W Shank, G Insert Seat, Right Hand Cutting, 0.5905 in Maximum Depth of Cut, Steel
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® 1-2 QS, Insert Compatibility: N123G2-0300-0003-TF, QS-RF123G15C2525E, 4.5709 in Overall Length, Rectangular Shank, 0.9842 in H x 0.9842 in W Shank, G Insert Seat, Right Hand Cutting, 0.5905 in Maximum Depth of Cut, Steel
Alternate Catalog Number QS-RF123G15C2525E Catalog Number 6537344 Country of Origin SE Gross Weight Per Pack 1.2500 lb Head Length 57.101 mm Internal or External External Item Group 480 Material Steel Series CoroCut® 1-2 QS Toolholder Style QS-R/LF123..C..E Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility N123G2-0300-0003-TF Insert Seat Size G Maximum Depth of Cut 15 mm Overall Length 116.101 mm Shank Size 25 mm H x 25 mm W Shank Type Rectangular 0 deg body workpiece side 20 life cycle state Axial concentric and radial entry coolant 150 bar coolant Axial inclined coolant exit 90 deg cutting edge 57.101 mm minimum overhang 0 deg inclination 0 deg rake ANSI Code: QS-RF123G15C2525E ISO Code: QS-RF123G15C2525E
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QS-RF123G15C2525E |
| Catalog Number | 6537344 |
| Country of Origin | SE |
| Gross Weight Per Pack | 1.2500 lb |
| Head Length | 57.101 mm |
| Internal or External | External |
| Item Group | 480 |
| Material | Steel |
| Series | CoroCut® 1-2 QS |
| Toolholder Style | QS-R/LF123..C..E |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | N123G2-0300-0003-TF |
| Insert Seat Size | G |
| Maximum Depth of Cut | 15 mm |
| Overall Length | 116.101 mm |
| Shank Size | 25 mm H x 25 mm W |
| Shank Type | Rectangular |
| 0 deg body workpiece side |
| 20 life cycle state |
| Axial concentric and radial entry coolant |
| 150 bar coolant |
| Axial inclined coolant exit |
| 90 deg cutting edge |
| 57.101 mm minimum overhang |
| 0 deg inclination |
| 0 deg rake |
| ANSI Code: QS-RF123G15C2525E |
| ISO Code: QS-RF123G15C2525E |
