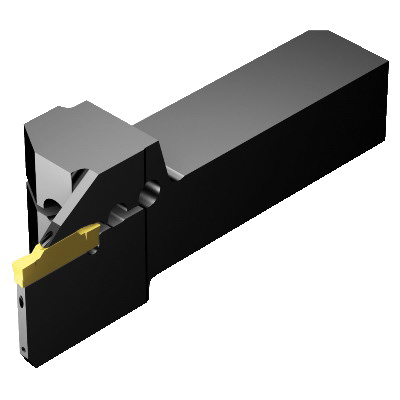

Sandvik Coromant 6537310 CoroCut® 1-2 QS Indexable Shank Tool, N123F2-0250-0002-CM insert, F Insert Seat, Left Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6537310 CoroCut® 1-2 QS Indexable Shank Tool, N123F2-0250-0002-CM insert, F Insert Seat, Left Hand
SKU1238208
MFGR #6537310
$/ea
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® 1-2 QS, Insert Compatibility: N123F2-0250-0002-CM, QS-LF123F20C2525E, 4.7677 in Overall Length, Rectangular Shank, 0.9842 in H x 0.9842 in W Shank, F Insert Seat, Left Hand Cutting, 0.7874 in Maximum Depth of Cut, Steel
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® 1-2 QS, Insert Compatibility: N123F2-0250-0002-CM, QS-LF123F20C2525E, 4.7677 in Overall Length, Rectangular Shank, 0.9842 in H x 0.9842 in W Shank, F Insert Seat, Left Hand Cutting, 0.7874 in Maximum Depth of Cut, Steel
Alternate Catalog Number QS-LF123F20C2525E Catalog Number 6537310 Country of Origin SE Gross Weight Per Pack 1.2700 lb Head Length 62.101 mm Internal or External External Item Group 480 Material Steel Series CoroCut® 1-2 QS Toolholder Style QS-R/LF123..C..E Toolholder Type QS-R/LF123..C..E Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Left Hand Insert Compatibility N123F2-0250-0002-CM Insert Seat Size F Maximum Depth of Cut 20 mm Overall Length 121.101 mm Shank Size 25 mm H x 25 mm W Shank Type Rectangular 0 deg body workpiece side 20 life cycle state Axial concentric and radial entry coolant 150 bar coolant Axial inclined coolant exit 90 deg cutting edge 62.101 mm minimum overhang 0 deg inclination 0 deg rake ANSI Code: QS-LF123F20C2525E ISO Code: QS-LF123F20C2525E
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QS-LF123F20C2525E |
| Catalog Number | 6537310 |
| Country of Origin | SE |
| Gross Weight Per Pack | 1.2700 lb |
| Head Length | 62.101 mm |
| Internal or External | External |
| Item Group | 480 |
| Material | Steel |
| Series | CoroCut® 1-2 QS |
| Toolholder Style | QS-R/LF123..C..E |
| Toolholder Type | QS-R/LF123..C..E |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Left Hand |
| Insert Compatibility | N123F2-0250-0002-CM |
| Insert Seat Size | F |
| Maximum Depth of Cut | 20 mm |
| Overall Length | 121.101 mm |
| Shank Size | 25 mm H x 25 mm W |
| Shank Type | Rectangular |
| 0 deg body workpiece side |
| 20 life cycle state |
| Axial concentric and radial entry coolant |
| 150 bar coolant |
| Axial inclined coolant exit |
| 90 deg cutting edge |
| 62.101 mm minimum overhang |
| 0 deg inclination |
| 0 deg rake |
| ANSI Code: QS-LF123F20C2525E |
| ISO Code: QS-LF123F20C2525E |
