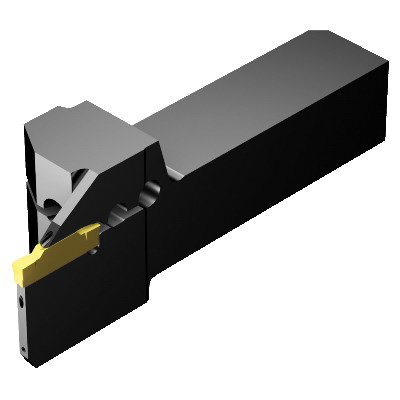

Sandvik Coromant 6537309 CoroCut® 1-2 QS Indexable Shank Tool, N123F2-0250-0002-CM insert, F Insert Seat, Left Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6537309 CoroCut® 1-2 QS Indexable Shank Tool, N123F2-0250-0002-CM insert, F Insert Seat, Left Hand
SKU1238209
MFGR #6537309
$/ea
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® 1-2 QS, Insert Compatibility: N123F2-0250-0002-CM, QS-LF123F20C2020F, 4.2008 in Overall Length, Rectangular Shank, 0.7874 in H x 0.7874 in W Shank, F Insert Seat, Left Hand Cutting, 0.7874 in Maximum Depth of Cut, Steel
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® 1-2 QS, Insert Compatibility: N123F2-0250-0002-CM, QS-LF123F20C2020F, 4.2008 in Overall Length, Rectangular Shank, 0.7874 in H x 0.7874 in W Shank, F Insert Seat, Left Hand Cutting, 0.7874 in Maximum Depth of Cut, Steel
Alternate Catalog Number QS-LF123F20C2020F Catalog Number 6537309 Country of Origin SE Gross Weight Per Pack 0.8400 lb Head Length 62.701 mm Internal or External External Item Group 480 Material Steel Series CoroCut® 1-2 QS Toolholder Style QS-R/LF123..C..F Toolholder Type QS-R/LF123..C..F Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Left Hand Insert Compatibility N123F2-0250-0002-CM Insert Seat Size F Maximum Depth of Cut 20 mm Overall Length 106.701 mm Shank Size 20 mm H x 20 mm W Shank Type Rectangular 0 deg body workpiece side 20 life cycle state Axial concentric and radial entry coolant 150 bar coolant 40 mm maximum workpiece parting diameter Axial inclined coolant exit 90 deg cutting edge 62.701 mm minimum overhang 0 deg inclination 0 deg rake ANSI Code: QS-LF123F20C2020F ISO Code: QS-LF123F20C2020F
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QS-LF123F20C2020F |
| Catalog Number | 6537309 |
| Country of Origin | SE |
| Gross Weight Per Pack | 0.8400 lb |
| Head Length | 62.701 mm |
| Internal or External | External |
| Item Group | 480 |
| Material | Steel |
| Series | CoroCut® 1-2 QS |
| Toolholder Style | QS-R/LF123..C..F |
| Toolholder Type | QS-R/LF123..C..F |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Left Hand |
| Insert Compatibility | N123F2-0250-0002-CM |
| Insert Seat Size | F |
| Maximum Depth of Cut | 20 mm |
| Overall Length | 106.701 mm |
| Shank Size | 20 mm H x 20 mm W |
| Shank Type | Rectangular |
| 0 deg body workpiece side |
| 20 life cycle state |
| Axial concentric and radial entry coolant |
| 150 bar coolant |
| 40 mm maximum workpiece parting diameter |
| Axial inclined coolant exit |
| 90 deg cutting edge |
| 62.701 mm minimum overhang |
| 0 deg inclination |
| 0 deg rake |
| ANSI Code: QS-LF123F20C2020F |
| ISO Code: QS-LF123F20C2020F |
