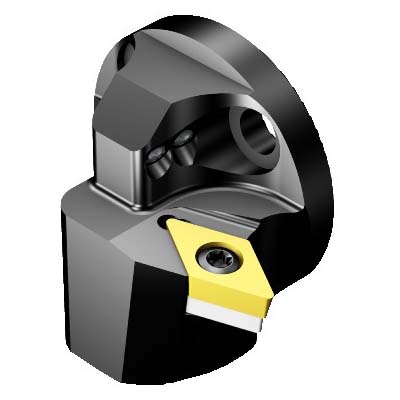

Sandvik Coromant 6536149 CoroTurn® 107 Thread Turning Head, 0.5905 in, 0.9291 in OAL, Right Hand, DCMT 070204 Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6536149 CoroTurn® 107 Thread Turning Head, 0.5905 in, 0.9291 in OAL, Right Hand, DCMT 070204 Insert
SKU1134063
MFGR #6536149
$/ea
Sandvik Coromant Thread Turning Head, Series: CoroTurn® 107, 0.5905 in Head Length/Projection, 0.9291 in Overall Length, D-55 deg Diamond Insert, Insert Compatibility: DCMT 070204, Right Hand Cutting, 0.7086 in Center to Cutting Edge, Steel
Sandvik Coromant Thread Turning Head, Series: CoroTurn® 107, 0.5905 in Head Length/Projection, 0.9291 in Overall Length, D-55 deg Diamond Insert, Insert Compatibility: DCMT 070204, Right Hand Cutting, 0.7086 in Center to Cutting Edge, Steel
Alternate Catalog Number SL-SDXCR-25-07-DHP Catalog Number 6536149 Country of Origin NO Gross Weight Per Pack 0.1600 lb Head Length|Projection 19.7 mm Insert Style DCMT Item Group 410 Material Steel Overall Length 23.6 mm Series CoroTurn® 107 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 18 mm Cutting Direction Right Hand Insert Compatibility DCMT 070204 Insert Holding Method Screw Clamp Internal or External Internal System Size 25 mm Unobstructed chip flow|Excellent chip control|Exceptional surface finish 20 life cycle state 0 deg body workpiece side Axial concentric entry 70 bar coolant 40 - 60 deg insert screw clamping Axial inclined exit 25 mm Dia connection 33 mm Dia minimum bore 62.5 deg cutting edge 19.7 mm L protruding 1/4 in insert seat 0.9 Nm torque SL-SDXCR/L-DHP tool style 27.5 deg lead -1 deg inclination 0 deg rake ANSI Code: SL-SDXCR-25-07-DHP ISO Code: SL-SDXCR-25-07-DHP
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | SL-SDXCR-25-07-DHP |
| Catalog Number | 6536149 |
| Country of Origin | NO |
| Gross Weight Per Pack | 0.1600 lb |
| Head Length|Projection | 19.7 mm |
| Insert Style | DCMT |
| Item Group | 410 |
| Material | Steel |
| Overall Length | 23.6 mm |
| Series | CoroTurn® 107 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 18 mm |
| Cutting Direction | Right Hand |
| Insert Compatibility | DCMT 070204 |
| Insert Holding Method | Screw Clamp |
| Internal or External | Internal |
| System Size | 25 mm |
| Unobstructed chip flow|Excellent chip control|Exceptional surface finish |
| 20 life cycle state |
| 0 deg body workpiece side |
| Axial concentric entry |
| 70 bar coolant |
| 40 - 60 deg insert screw clamping |
| Axial inclined exit |
| 25 mm Dia connection |
| 33 mm Dia minimum bore |
| 62.5 deg cutting edge |
| 19.7 mm L protruding |
| 1/4 in insert seat |
| 0.9 Nm torque |
| SL-SDXCR/L-DHP tool style |
| 27.5 deg lead |
| -1 deg inclination |
| 0 deg rake |
| ANSI Code: SL-SDXCR-25-07-DHP |
| ISO Code: SL-SDXCR-25-07-DHP |
