Sandvik Coromant

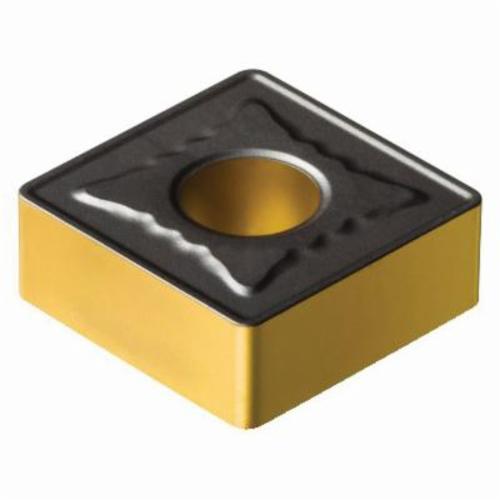

Sandvik Coromant 6532413 T-Max® P Negative Basic Shape Turning Insert, SNMG 644-MR 4325, S-Square, SNMG Insert, 4325, Carbide
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6532413 T-Max® P Negative Basic Shape Turning Insert, SNMG 644-MR 4325, S-Square, SNMG Insert, 4325, Carbide
SKU1239152
MFGR #6532413
$/ea
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 12 mm Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 3/4 in Length, MR Chipbreaker, 0.0624 in Corner Radius, 0.312 in Hole Dia, Manufacturer's Grade: 4325, ANSI Code: SNMG 644-MR 4325, ISO Code: SNMG 19 06 16-MR 4325, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 12 mm Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 3/4 in Length, MR Chipbreaker, 0.0624 in Corner Radius, 0.312 in Hole Dia, Manufacturer's Grade: 4325, ANSI Code: SNMG 644-MR 4325, ISO Code: SNMG 19 06 16-MR 4325, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Alternate Catalog Number SNMG 644-MR 4325 ANSI Code SNMG 644-MR 4325 Catalog Number 6532413 Corner Radius 0.062 in Country of Origin US Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.6700 lb Hole Diameter 0.312 in Included Angle 90 ° ISO Code SNMG 19 06 16-MR 4325 Item Group 112 Length 3/4 in Relief Angle 0 ° Series T-Max® P Thickness 1/4 in Width 3/4 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker MR Cutting Direction Neutral For Use On Cast Iron and Steel Inscribed Circle 3/4 in Insert Size 644 Insert Style SNMG Manufacturer's Grade 4325 Material Carbide Material Grade K, P Maximum Depth of Cut 11.4 mm Rake Negative Seat Size 19 Shape Square T9325 grade functionally gradient substrate Relatively low content of cobalt binder phase Highly versatile material with very good operational reliability Special surface finish for coating Medium and higher cutting speed Continuous and interrupted cut Unfavorable cutting conditions, continuous and/or interrupted cuts Cutting geometry suitable for grooving and axial turning
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | SNMG 644-MR 4325 |
| ANSI Code | SNMG 644-MR 4325 |
| Catalog Number | 6532413 |
| Corner Radius | 0.062 in |
| Country of Origin | US |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.6700 lb |
| Hole Diameter | 0.312 in |
| Included Angle | 90 ° |
| ISO Code | SNMG 19 06 16-MR 4325 |
| Item Group | 112 |
| Length | 3/4 in |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 1/4 in |
| Width | 3/4 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | MR |
| Cutting Direction | Neutral |
| For Use On | Cast Iron and Steel |
| Inscribed Circle | 3/4 in |
| Insert Size | 644 |
| Insert Style | SNMG |
| Manufacturer's Grade | 4325 |
| Material | Carbide |
| Material Grade | K, P |
| Maximum Depth of Cut | 11.4 mm |
| Rake | Negative |
| Seat Size | 19 |
| Shape | Square |
| T9325 grade functionally gradient substrate |
| Relatively low content of cobalt binder phase |
| Highly versatile material with very good operational reliability |
| Special surface finish for coating |
| Medium and higher cutting speed |
| Continuous and interrupted cut |
| Unfavorable cutting conditions, continuous and/or interrupted cuts |
| Cutting geometry suitable for grooving and axial turning |
