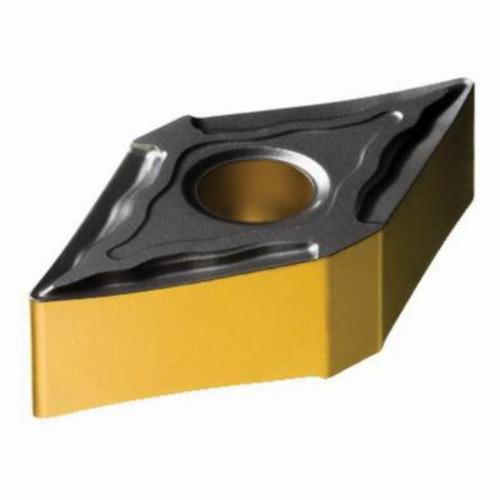

Sandvik Coromant 6532369 T-Max® P Negative Basic Shape Turning Insert, DNMG 433-MF 4325, D-55 deg Diamond, DNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6532369 T-Max® P Negative Basic Shape Turning Insert, DNMG 433-MF 4325, D-55 deg Diamond, DNMG Insert
SKU1250269
MFGR #6532369
$/ea
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 3.8 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.6103 in Length, MF Chipbreaker, 0.0468 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 4325, ANSI Code: DNMG 433-MF 4325, ISO Code: DNMG 15 04 12-MF 4325, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 3.8 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.6103 in Length, MF Chipbreaker, 0.0468 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 4325, ANSI Code: DNMG 433-MF 4325, ISO Code: DNMG 15 04 12-MF 4325, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Alternate Catalog Number DNMG 433-MF 4325 ANSI Code DNMG 433-MF 4325 Catalog Number 6532369 Corner Radius 0.0468 in Country of Origin SE Finish MTCVD Coated Gross Weight Per Pack 0.0200 lb Hand of Insert Neutral Hole Diameter 0.2029 in Included Angle 55 deg ISO Code DNMG 15 04 12-MF 4325 Item Group 112 Length 0.6103 in Relief Angle 0 deg Series T-Max® P Thickness 0.1874 in Type Negative Basic Shape Width 0 deg Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker MF Cutting Direction Neutral For Use On Cast Iron and Steel Inscribed Circle 1/2 in Insert Size 5.15 mm Insert Style DNMG Manufacturer's Grade 4325 Material Carbide Material Grade K/P Maximum Depth of Cut 3.8 mm Rake Negative Seat Size 15 Shape D-55 deg Diamond Straight hole and non-flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.2 - 0.6 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | DNMG 433-MF 4325 |
| ANSI Code | DNMG 433-MF 4325 |
| Catalog Number | 6532369 |
| Corner Radius | 0.0468 in |
| Country of Origin | SE |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0200 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.2029 in |
| Included Angle | 55 deg |
| ISO Code | DNMG 15 04 12-MF 4325 |
| Item Group | 112 |
| Length | 0.6103 in |
| Relief Angle | 0 deg |
| Series | T-Max® P |
| Thickness | 0.1874 in |
| Type | Negative Basic Shape |
| Width | 0 deg |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | MF |
| Cutting Direction | Neutral |
| For Use On | Cast Iron and Steel |
| Inscribed Circle | 1/2 in |
| Insert Size | 5.15 mm |
| Insert Style | DNMG |
| Manufacturer's Grade | 4325 |
| Material | Carbide |
| Material Grade | K/P |
| Maximum Depth of Cut | 3.8 mm |
| Rake | Negative |
| Seat Size | 15 |
| Shape | D-55 deg Diamond |
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.2 - 0.6 mm/r cutting feed |
| 20 life cycle state |
