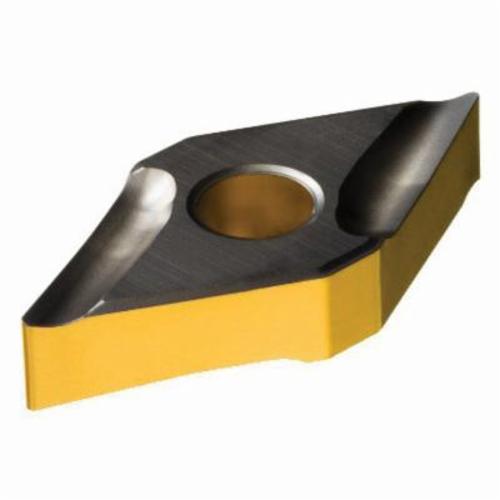

Sandvik Coromant 6532341 T-Max® P Negative Basic Shape Turning Insert, DNMG 432R-K 4325, D-55 deg Diamond, DNMG Insert, 4325
Custom_Product_Images_Illustration
Sandvik Coromant 6532341 T-Max® P Negative Basic Shape Turning Insert, DNMG 432R-K 4325, D-55 deg Diamond, DNMG Insert, 4325
SKU1250271
MFGR #6532341
$/ea
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 5 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.6103 in Length, K Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 4325, ANSI Code: DNMG 432R-K 4325, ISO Code: DNMG 15 04 08R-K 4325, 55 deg Included Angle, 0 deg Relief Angle, Right Hand, Carbide, MTCVD Coated, Material Grade: K/P
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 5 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.6103 in Length, K Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 4325, ANSI Code: DNMG 432R-K 4325, ISO Code: DNMG 15 04 08R-K 4325, 55 deg Included Angle, 0 deg Relief Angle, Right Hand, Carbide, MTCVD Coated, Material Grade: K/P
Alternate Catalog Number DNMG 432R-K 4325 ANSI Code DNMG 432R-K 4325 Catalog Number 6532341 Corner Radius 0.0312 in Country of Origin SE Finish MTCVD Coated Gross Weight Per Pack 0.0300 lb Hand of Insert Right Hole Diameter 0.2029 in Included Angle 55 deg ISO Code DNMG 15 04 08R-K 4325 Item Group 112 Length 0.6103 in Relief Angle 0 deg Series T-Max® P Thickness 0.1874 in Type Negative Basic Shape Width Negative Basic Shape Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker K Inscribed Circle 1/2 in Insert Size 0 deg Insert Style DNMG Manufacturer's Grade 4325 Material Carbide Material Grade K/P Maximum Depth of Cut 5 mm Shape D-55 deg Diamond Straight hole and non-flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.14 - 0.5 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | DNMG 432R-K 4325 |
| ANSI Code | DNMG 432R-K 4325 |
| Catalog Number | 6532341 |
| Corner Radius | 0.0312 in |
| Country of Origin | SE |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0300 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.2029 in |
| Included Angle | 55 deg |
| ISO Code | DNMG 15 04 08R-K 4325 |
| Item Group | 112 |
| Length | 0.6103 in |
| Relief Angle | 0 deg |
| Series | T-Max® P |
| Thickness | 0.1874 in |
| Type | Negative Basic Shape |
| Width | Negative Basic Shape |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | K |
| Inscribed Circle | 1/2 in |
| Insert Size | 0 deg |
| Insert Style | DNMG |
| Manufacturer's Grade | 4325 |
| Material | Carbide |
| Material Grade | K/P |
| Maximum Depth of Cut | 5 mm |
| Shape | D-55 deg Diamond |
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.14 - 0.5 mm/r cutting feed |
| 20 life cycle state |
