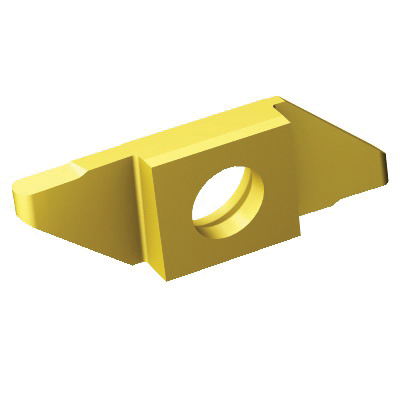

Sandvik Coromant 6493373 CoroCut® XS, MAPL 3 250 1025, MAPL Insert, Carbide, 0.1574 in Max Depth of Cut, M/N/P/S
MAPL Profiling Inserts
1250571
MFG #: 6493373
Sandvik Coromant
56.85000
/ ea
Sandvik Coromant Profiling Insert, Series: CoroCut® XS, MAPL Insert, 0.1574 in Maximum Depth of Cut, 1/8 in Thickness, 0.4921 in Length, MAP Chipbreaker, ANSI Code: MAPL 3 250 1025, 0.0492 in Corner Radius, Manufacturer's Grade: 1025, Left Hand, Carbide, PVD Coated, Material Grade: M/N/P/S
- Features
| 6 deg clearance |
| 20 life cycle state |
| 0 deg body machine side |
| 2.5 mm W cutting |
| E cutting edge condition |
| Finishing operation |
| 40 - 60 deg countersunk hole and flat surface |
| -0.025 mm W cutting lower tolerance |
| 0.025 mm W cutting upper tolerance |
| -0.025 mm corner radius lower tolerance |
| 0.025 mm corner radius upper tolerance |
| 90 deg ramping |
| 3 insert mounting style code |
| 3 insert seat size |
| ANSI Code: MAPL 3 250 1025 |
| ISO Code: MAPL 3 250 1025 |
