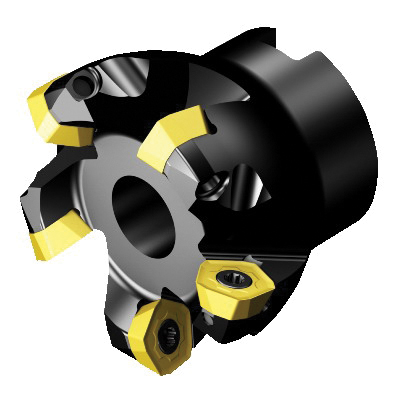

Sandvik Coromant 6449362 CoroMill® 419 Face Milling Cutter, 1.5511 in Cutting, 0.8661 in Shank, 1.7716 in OAL, 419..Qxx Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6449362 CoroMill® 419 Face Milling Cutter, 1.5511 in Cutting, 0.8661 in Shank, 1.7716 in OAL, 419..Qxx Insert
SKU1246050
MFGR #6449362
$/ea
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 419, 1.5511 in Cutting Dia, 1.7716 in Overall Length, 0.0787 in Maximum Depth of Cut, 419..Qxx Insert, 5 Inserts, Insert Compatibility: 419R-1405, 0.8661 in Shank Dia, Right Hand Cutting, 19 deg Cutting Angle, ANSI Code: 419-054Q22-14H, ISO Code: 419-054Q22-14H, Steel
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 419, 1.5511 in Cutting Dia, 1.7716 in Overall Length, 0.0787 in Maximum Depth of Cut, 419..Qxx Insert, 5 Inserts, Insert Compatibility: 419R-1405, 0.8661 in Shank Dia, Right Hand Cutting, 19 deg Cutting Angle, ANSI Code: 419-054Q22-14H, ISO Code: 419-054Q22-14H, Steel
Alternate Catalog Number 419-054Q22-14H ANSI Code 419-054Q22-14H Catalog Number 6449362 Country of Origin US Gross Weight Per Pack 1.1700 lb ISO Code 419-054Q22-14H Item Group 450 Lead Angle 19 ° Material Steel Series CoroMill® 419 Standards ISO 6462:2011 UPC 11 69826276093 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Arbor Hole Diameter 0.8661 in Cutting Angle 19 ° Cutting Diameter 1.5511 in Cutting Direction Right Hand Insert Compatibility 419R-1405 Insert Style 419..Qxx Maximum Depth of Cut 0.0787 in Number of Inserts 5 Overall Length 1.7716 in Shank Diameter 0.8661 in Through Coolant Yes Axial concentric coolant entry Hexagon socket head cap screw adaptive interface 10 bar coolant pressure 40 - 60 deg insert screw clamping interface 54 mm Dia maximum cutting 10.4 mm W keyway 45 mm overhang 8 deg maximum ramping 16800 r/min cutting feed 5 Nm torque 20 life cycle state 43 mm Dia neck Hexagon socket head cap screw adaptive interface
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 419-054Q22-14H |
| ANSI Code | 419-054Q22-14H |
| Catalog Number | 6449362 |
| Country of Origin | US |
| Gross Weight Per Pack | 1.1700 lb |
| ISO Code | 419-054Q22-14H |
| Item Group | 450 |
| Lead Angle | 19 ° |
| Material | Steel |
| Series | CoroMill® 419 |
| Standards | ISO 6462:2011 |
| UPC 11 | 69826276093 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Arbor Hole Diameter | 0.8661 in |
| Cutting Angle | 19 ° |
| Cutting Diameter | 1.5511 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | 419R-1405 |
| Insert Style | 419..Qxx |
| Maximum Depth of Cut | 0.0787 in |
| Number of Inserts | 5 |
| Overall Length | 1.7716 in |
| Shank Diameter | 0.8661 in |
| Through Coolant | Yes |
| Axial concentric coolant entry |
| Hexagon socket head cap screw adaptive interface |
| 10 bar coolant pressure |
| 40 - 60 deg insert screw clamping interface |
| 54 mm Dia maximum cutting |
| 10.4 mm W keyway |
| 45 mm overhang |
| 8 deg maximum ramping |
| 16800 r/min cutting feed |
| 5 Nm torque |
| 20 life cycle state |
| 43 mm Dia neck |
| Hexagon socket head cap screw adaptive interface |
