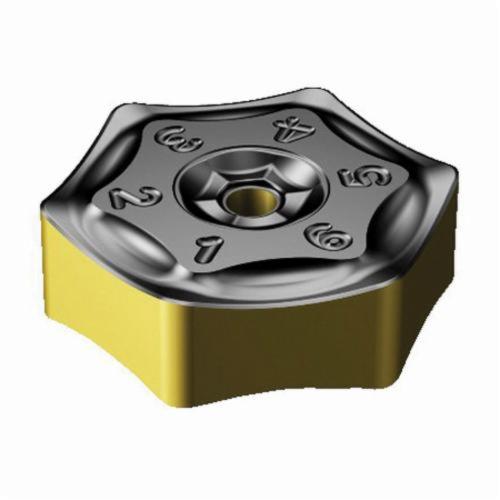

Sandvik Coromant 6428171 CoroMill® S-60 Milling Insert, HNMF 09 05 16-KH 3330, H-Hexagon, HNMF-KH Insert, Carbide, 3330, HNMF 09 05 16-KH 3330
HNMF Milling Inserts
1250033
MFG #: 6428171
Sandvik Coromant
35.88000
/ ea
Sandvik Coromant Milling Insert, Series: CoroMill® S-60, HNMF-KH Insert, H-Hexagon, 0.6377 in Inscribed Circle, 0.2188 in Thickness, 1/2 in Length, KH Chipbreaker, 0.0629 in Corner Radius, 11 deg Rake, Manufacturer's Grade: 3330, ANSI Code: HNMF 09 05 16-KH 3330, ISO Code: HNMF 09 05 16-KH 3330, Neutral Hand, Carbide, CVD Coated, Material Grade: K
- Features
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 120 deg included angle |
| 60 deg cutting edge angle |
| 20 life cycle state |
| 2-side cutting |
| 0.2 to 0.5 mm/r cutting feed |
