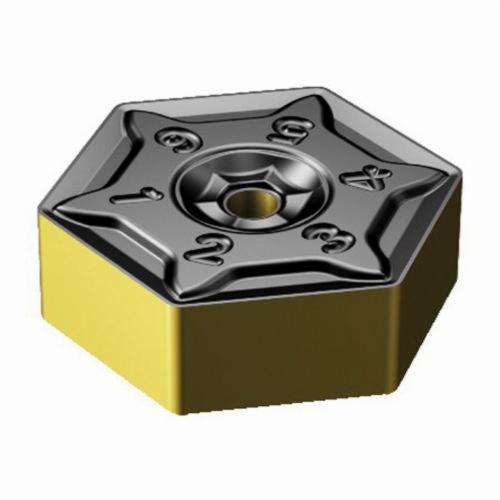

Sandvik Coromant 6428170 CoroMill® S-60 Milling Insert, HNEF 09 05 08-KM 3330 ANSI, H-Hexagon, HNEF-KM Insert, Carbide, 3330
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6428170 CoroMill® S-60 Milling Insert, HNEF 09 05 08-KM 3330 ANSI, H-Hexagon, HNEF-KM Insert, Carbide, 3330
SKU1250042
MFGR #6428170
Your Cost: $38.91/ea
List: Sandvik Coromant Milling Insert, Series: CoroMill® S-60, HNEF-KM Insert, H-Hexagon, 0.6377 in Inscribed Circle, 0.2188 in Thickness, 0.3682 in Length, KM Chipbreaker, 0.0314 in Corner Radius, 15 deg Rake, Manufacturer's Grade: 3330, ANSI Code: HNEF 09 05 08-KM 3330, ISO Code: HNEF 09 05 08-KM 3330, Neutral Hand, Carbide, CVD Coated, Material Grade: K
Sandvik Coromant Milling Insert, Series: CoroMill® S-60, HNEF-KM Insert, H-Hexagon, 0.6377 in Inscribed Circle, 0.2188 in Thickness, 0.3682 in Length, KM Chipbreaker, 0.0314 in Corner Radius, 15 deg Rake, Manufacturer's Grade: 3330, ANSI Code: HNEF 09 05 08-KM 3330, ISO Code: HNEF 09 05 08-KM 3330, Neutral Hand, Carbide, CVD Coated, Material Grade: K
Alternate Catalog Number HNEF 09 05 08-KM 3330 ANSI Code HNEF 09 05 08-KM 3330 Catalog Number 6428170 Corner Radius 0.0314 in Country of Origin SE Finish CVD Coated Gross Weight Per Pack 0.0400 lb Hand of Insert Neutral Hole Diameter Carbide Included Angle H - Hexagon ISO Code HNEF 09 05 08-KM 3330 Item Group 170 Lead Angle Neutral Length 0.3682 in Relief Angle 5.56 mm Series CoroMill® S-60 Thickness 0.2188 in Type CoroMill® S-60 Width 0.8 mm Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker KM Inscribed Circle 0.6377 in Insert Size 16.2 mm Insert Style HNEF-KM Manufacturer's Grade 3330 Material Carbide Material Grade K Rake 15 deg Shape H-Hexagon 40 to 60 deg countersunk hole and non-flat surface clamping interface 120 deg included angle 60 deg cutting edge angle 20 life cycle state 2-side cutting 0.1 to 0.29 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | HNEF 09 05 08-KM 3330 |
| ANSI Code | HNEF 09 05 08-KM 3330 |
| Catalog Number | 6428170 |
| Corner Radius | 0.0314 in |
| Country of Origin | SE |
| Finish | CVD Coated |
| Gross Weight Per Pack | 0.0400 lb |
| Hand of Insert | Neutral |
| Hole Diameter | Carbide |
| Included Angle | H - Hexagon |
| ISO Code | HNEF 09 05 08-KM 3330 |
| Item Group | 170 |
| Lead Angle | Neutral |
| Length | 0.3682 in |
| Relief Angle | 5.56 mm |
| Series | CoroMill® S-60 |
| Thickness | 0.2188 in |
| Type | CoroMill® S-60 |
| Width | 0.8 mm |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | KM |
| Inscribed Circle | 0.6377 in |
| Insert Size | 16.2 mm |
| Insert Style | HNEF-KM |
| Manufacturer's Grade | 3330 |
| Material | Carbide |
| Material Grade | K |
| Rake | 15 deg |
| Shape | H-Hexagon |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 120 deg included angle |
| 60 deg cutting edge angle |
| 20 life cycle state |
| 2-side cutting |
| 0.1 to 0.29 mm/r cutting feed |
