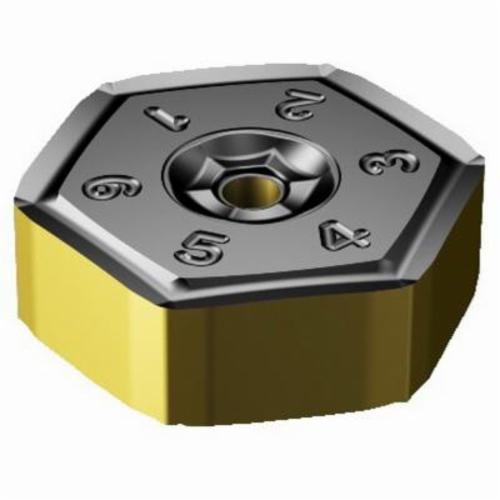

Sandvik Coromant 6428167 CoroMill® S-60 Milling Insert, HNEF 09 05 04-KL 3330, H-Hexagon, HNEF-KL Insert, Carbide, 3330, HNEF 09 05 04-KL 3330
HNEF Milling Inserts
1250039
MFG #: 6428167
Sandvik Coromant
35.88000
/ ea
Sandvik Coromant Milling Insert, Series: CoroMill® S-60, HNEF-KL Insert, H-Hexagon, 0.6377 in Inscribed Circle, 0.2188 in Thickness, 1/2 in Length, KL Chipbreaker, 0.0157 in Corner Radius, 10 deg Rake, Manufacturer's Grade: 3330, ANSI Code: HNEF 09 05 04-KL 3330, ISO Code: HNEF 09 05 04-KL 3330, Neutral Hand, Carbide, CVD Coated, Material Grade: K
- Features
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 120 deg included angle |
| 60 deg cutting edge angle |
| 20 life cycle state |
| 1.6 mm wiper edge |
| 2-side cutting |
| 0.1 to 0.21 mm/r cutting feed |
