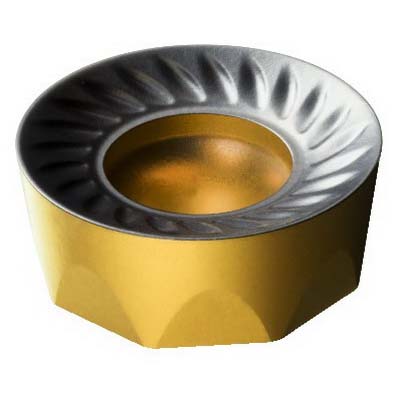

Sandvik Coromant 6428105 CoroMill® 200 Milling Insert, RCKT 12 04 M0-KM 3330, R-Round, RCKT-KM Insert, Carbide, 3330, RCKT 12 04 M0-KM 3330
Custom_Product_Images_Illustration
Sandvik Coromant 6428105 CoroMill® 200 Milling Insert, RCKT 12 04 M0-KM 3330, R-Round, RCKT-KM Insert, Carbide, 3330, RCKT 12 04 M0-KM 3330
SKU1239681
MFGR #6428105
$/ea
Sandvik Coromant Milling Insert, Series: CoroMill® 200, RCKT-KM Insert, R-Round, 0.4724 in Inscribed Circle, 0.1874 in Thickness, KM Chipbreaker, 0.2362 in Corner Radius, Positive Rake, 0.1574 in Hole Dia, Manufacturer's Grade: 3330, ANSI Code: RCKT 12 04 M0-KM 3330, ISO Code: RCKT 12 04 M0-KM 3330, Neutral Hand, Carbide, CVD Coated, Material Grade: K
Sandvik Coromant Milling Insert, Series: CoroMill® 200, RCKT-KM Insert, R-Round, 0.4724 in Inscribed Circle, 0.1874 in Thickness, KM Chipbreaker, 0.2362 in Corner Radius, Positive Rake, 0.1574 in Hole Dia, Manufacturer's Grade: 3330, ANSI Code: RCKT 12 04 M0-KM 3330, ISO Code: RCKT 12 04 M0-KM 3330, Neutral Hand, Carbide, CVD Coated, Material Grade: K
Alternate Catalog Number RCKT 12 04 M0-KM 3330 ANSI Code RCKT 12 04 M0-KM 3330 Catalog Number 6428105 Corner Radius 0.236 in Country of Origin JP Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.1300 lb Hand of Insert Neutral Hole Diameter 0.157 in ISO Code RCKT 12 04 M0-KM 3330 Item Group 350 Lead Angle 7 ° Material Application Cast Iron Series CoroMill® 200 Thickness 0.187 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker KM Inscribed Circle 0.472 in Insert Size 1204M0 Insert Style RCKT Manufacturer's Grade 3330 Material Carbide Material Grade K Rake Positive Shape Round 40 to 60 deg countersunk hole and non-flat surface clamping interface 7 deg clearance 1.76 mm D cutting 1-side cutting 20 life cycle state 8 corner E cutting edge condition 8 cutting edge Screw clamp mounting 0.1 to 0.28 mm/r cutting feed
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | RCKT 12 04 M0-KM 3330 |
| ANSI Code | RCKT 12 04 M0-KM 3330 |
| Catalog Number | 6428105 |
| Corner Radius | 0.236 in |
| Country of Origin | JP |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.1300 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.157 in |
| ISO Code | RCKT 12 04 M0-KM 3330 |
| Item Group | 350 |
| Lead Angle | 7 ° |
| Material Application | Cast Iron |
| Series | CoroMill® 200 |
| Thickness | 0.187 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | KM |
| Inscribed Circle | 0.472 in |
| Insert Size | 1204M0 |
| Insert Style | RCKT |
| Manufacturer's Grade | 3330 |
| Material | Carbide |
| Material Grade | K |
| Rake | Positive |
| Shape | Round |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 7 deg clearance |
| 1.76 mm D cutting |
| 1-side cutting |
| 20 life cycle state |
| 8 corner |
| E cutting edge condition |
| 8 cutting edge |
| Screw clamp mounting |
| 0.1 to 0.28 mm/r cutting feed |
