Sandvik Coromant

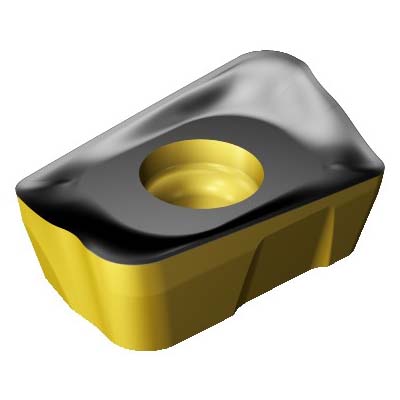

Sandvik Coromant 6428069 CoroMill® 390 Milling Insert, R390-18 06 12M-KM 3330, L-Rectangle, R390-18..M-KM Insert, Carbide, 3330, R390-18 06 12M-KM 3330
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6428069 CoroMill® 390 Milling Insert, R390-18 06 12M-KM 3330, L-Rectangle, R390-18..M-KM Insert, Carbide, 3330, R390-18 06 12M-KM 3330
SKU1239603
MFGR #6428069
$/ea
Sandvik Coromant Milling Insert, Series: CoroMill® 390, R390-18..M-KM Insert, L-Rectangle, 0.512 in Inscribed Circle, 0.2492 in Thickness, 0.433 in Width, 0.7263 in Length, KM Chipbreaker, 0.047 in Corner Radius, Positive Rake, 0.1633 in Hole Dia, Manufacturer's Grade: 3330, ANSI Code: R390-18 06 12M-KM 3330, ISO Code: R390-18 06 12M-KM 3330, Right Hand, Carbide, CVD Coated, Material Grade: K
Sandvik Coromant Milling Insert, Series: CoroMill® 390, R390-18..M-KM Insert, L-Rectangle, 0.512 in Inscribed Circle, 0.2492 in Thickness, 0.433 in Width, 0.7263 in Length, KM Chipbreaker, 0.047 in Corner Radius, Positive Rake, 0.1633 in Hole Dia, Manufacturer's Grade: 3330, ANSI Code: R390-18 06 12M-KM 3330, ISO Code: R390-18 06 12M-KM 3330, Right Hand, Carbide, CVD Coated, Material Grade: K
Alternate Catalog Number R390-18 06 12M-KM 3330 ANSI Code R390-18 06 12M-KM 3330 Catalog Number 6428069 Corner Radius 0.047 in Country of Origin US Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.3000 lb Hand of Insert Right Hole Diameter 0.163 in ISO Code R390-18 06 12M-KM 3330 Item Group 350 Lead Angle 90 ° Length 0.726 in Material Application Cast Iron Series CoroMill® 390 Thickness 0.249 in Width 0.433 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker KM Inscribed Circle 0.433 in Insert Size 180612 Insert Style R390-18..M-KM Manufacturer's Grade 3330 Material Carbide Material Grade K Rake Positive Shape Rectangle 40 to 60 deg countersunk hole and non-flat surface clamping interface 11 deg clearance 16 mm D cutting 1.1 mm L wiper edge 90 deg major cutting edge 15.4 mm L effective cutting edge 1-side cutting 20 life cycle state 2 corner E cutting edge condition 2 cutting edge Screw clamp mounting 0.08 to 0.3 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | R390-18 06 12M-KM 3330 |
| ANSI Code | R390-18 06 12M-KM 3330 |
| Catalog Number | 6428069 |
| Corner Radius | 0.047 in |
| Country of Origin | US |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.3000 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.163 in |
| ISO Code | R390-18 06 12M-KM 3330 |
| Item Group | 350 |
| Lead Angle | 90 ° |
| Length | 0.726 in |
| Material Application | Cast Iron |
| Series | CoroMill® 390 |
| Thickness | 0.249 in |
| Width | 0.433 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | KM |
| Inscribed Circle | 0.433 in |
| Insert Size | 180612 |
| Insert Style | R390-18..M-KM |
| Manufacturer's Grade | 3330 |
| Material | Carbide |
| Material Grade | K |
| Rake | Positive |
| Shape | Rectangle |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 11 deg clearance |
| 16 mm D cutting |
| 1.1 mm L wiper edge |
| 90 deg major cutting edge |
| 15.4 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 2 corner |
| E cutting edge condition |
| 2 cutting edge |
| Screw clamp mounting |
| 0.08 to 0.3 mm/r cutting feed |
