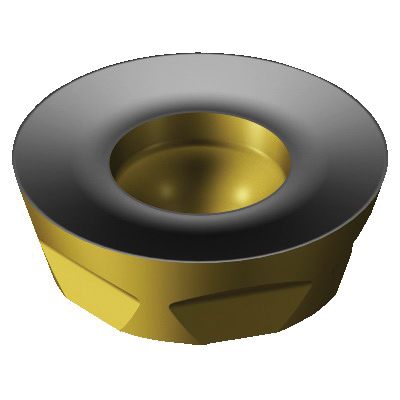

Sandvik Coromant 6428035 CoroMill® 300 Milling Insert, R300-1340M-KH 3330, R-Round, R300..M-KH (INCH) Insert, Carbide, 3330, R300-1340M-KH 3330
Custom_Product_Images_Illustration
Sandvik Coromant 6428035 CoroMill® 300 Milling Insert, R300-1340M-KH 3330, R-Round, R300..M-KH (INCH) Insert, Carbide, 3330, R300-1340M-KH 3330
SKU1238931
MFGR #6428035
$/ea
Sandvik Coromant Milling Insert, Series: CoroMill® 300, R300..M-KH (INCH) Insert, R-Round, 1/2 in Inscribed Circle, 0.1562 in Thickness, KH Chipbreaker, 1/4 in Corner Radius, Negative Rake, 0.1614 in Hole Dia, Manufacturer's Grade: 3330, ANSI Code: R300-1340M-KH 3330, ISO Code: R300-1340M-KH 3330, Neutral Hand, Carbide, CVD Coated, Material Grade: K
Sandvik Coromant Milling Insert, Series: CoroMill® 300, R300..M-KH (INCH) Insert, R-Round, 1/2 in Inscribed Circle, 0.1562 in Thickness, KH Chipbreaker, 1/4 in Corner Radius, Negative Rake, 0.1614 in Hole Dia, Manufacturer's Grade: 3330, ANSI Code: R300-1340M-KH 3330, ISO Code: R300-1340M-KH 3330, Neutral Hand, Carbide, CVD Coated, Material Grade: K
Catalog Number 6428035 Corner Radius 1/4 in Country of Origin US Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.1300 lb Hand of Insert Neutral Hole Diameter 0.1614 in ISO Code R300-1340M-KH 3330 Material Application Cast Iron Series CoroMill® 300 Thickness 0.156 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer SANDVIK COROMANT CO Chipbreaker KH Inscribed Circle 1/2 in Insert Size 1340 Insert Style R300..M-KH (INCH) Manufacturer's Grade 3330 Material Carbide Material Grade K Rake Negative Shape Round 40 to 60 deg countersunk hole and non-flat surface clamping interface 15 deg clearance 3.18 mm D cutting 1-side cutting 20 life cycle state 6 corner E cutting edge condition 6 cutting edge 0.07 to 0.42 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 6428035 |
| Corner Radius | 1/4 in |
| Country of Origin | US |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.1300 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.1614 in |
| ISO Code | R300-1340M-KH 3330 |
| Material Application | Cast Iron |
| Series | CoroMill® 300 |
| Thickness | 0.156 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | SANDVIK COROMANT CO |
| Chipbreaker | KH |
| Inscribed Circle | 1/2 in |
| Insert Size | 1340 |
| Insert Style | R300..M-KH (INCH) |
| Manufacturer's Grade | 3330 |
| Material | Carbide |
| Material Grade | K |
| Rake | Negative |
| Shape | Round |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 15 deg clearance |
| 3.18 mm D cutting |
| 1-side cutting |
| 20 life cycle state |
| 6 corner |
| E cutting edge condition |
| 6 cutting edge |
| 0.07 to 0.42 mm/r cutting feed |
