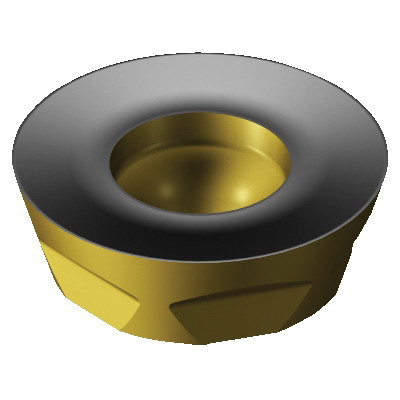

Sandvik Coromant 6428031 CoroMill® 300 Milling Insert, R300-0828M-KH 3330 ANSI, R-Round, R300..M-KH Insert, Carbide, 3330
Custom_Product_Images_Illustration
Sandvik Coromant 6428031 CoroMill® 300 Milling Insert, R300-0828M-KH 3330 ANSI, R-Round, R300..M-KH Insert, Carbide, 3330
SKU1238878
MFGR #6428031
$/ea
Sandvik Coromant Milling Insert, Series: CoroMill® 300, R300..M-KH Insert, R-Round, 0.3149 in Inscribed Circle, 0.1094 in Thickness, KH Chipbreaker, 0.1574 in Corner Radius, Positive Rake, 0.1102 in Hole Dia, Manufacturer's Grade: 3330, ANSI Code: R300-0828M-KH 3330, ISO Code: R300-0828M-KH 3330, Neutral Hand, Carbide, CVD Coated, Material Grade: K
Sandvik Coromant Milling Insert, Series: CoroMill® 300, R300..M-KH Insert, R-Round, 0.3149 in Inscribed Circle, 0.1094 in Thickness, KH Chipbreaker, 0.1574 in Corner Radius, Positive Rake, 0.1102 in Hole Dia, Manufacturer's Grade: 3330, ANSI Code: R300-0828M-KH 3330, ISO Code: R300-0828M-KH 3330, Neutral Hand, Carbide, CVD Coated, Material Grade: K
Alternate Catalog Number R300-0828M-KH 3330 Catalog Number 6428031 Corner Radius 0.157 in Country of Origin US Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 5.3100 lb Hand of Insert Neutral Hole Diameter 0.1102 in ISO Code R300-0828M-KH 3330 Item Group 350 Material Application Cast Iron Series CoroMill® 300 Thickness 0.109 IN Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker KH Inscribed Circle 0.315 in Insert Size 0828 Insert Style R300..M-KH Manufacturer's Grade 3330 Material Carbide Material Grade K Rake Positive Shape Round 40 to 60 deg countersunk hole and non-flat surface clamping interface 15 deg clearance 4 mm D cutting 1-side cutting 20 life cycle state 4 corner E cutting edge condition 4 cutting edge Screw clamp mounting 0.07 to 0.35 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | R300-0828M-KH 3330 |
| Catalog Number | 6428031 |
| Corner Radius | 0.157 in |
| Country of Origin | US |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 5.3100 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.1102 in |
| ISO Code | R300-0828M-KH 3330 |
| Item Group | 350 |
| Material Application | Cast Iron |
| Series | CoroMill® 300 |
| Thickness | 0.109 IN |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | KH |
| Inscribed Circle | 0.315 in |
| Insert Size | 0828 |
| Insert Style | R300..M-KH |
| Manufacturer's Grade | 3330 |
| Material | Carbide |
| Material Grade | K |
| Rake | Positive |
| Shape | Round |
| 40 to 60 deg countersunk hole and non-flat surface clamping interface |
| 15 deg clearance |
| 4 mm D cutting |
| 1-side cutting |
| 20 life cycle state |
| 4 corner |
| E cutting edge condition |
| 4 cutting edge |
| Screw clamp mounting |
| 0.07 to 0.35 mm/r cutting feed |
