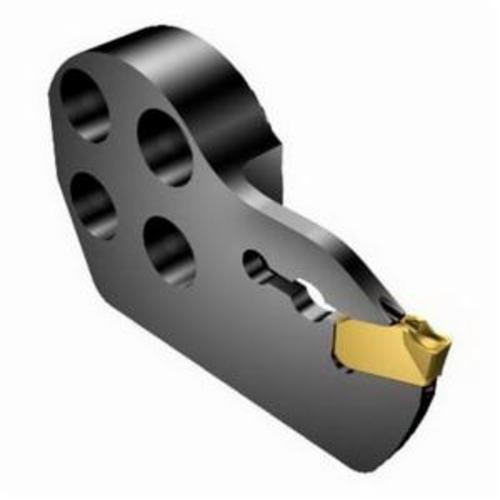

Sandvik Coromant 6427827 CoroCut® QD SL Head, Right Hand, QD-NF-0250-0002-CM Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6427827 CoroCut® QD SL Head, Right Hand, QD-NF-0250-0002-CM Insert
SKU1238549
MFGR #6427827
$/ea
Sandvik Coromant Grooving Head, SL Head, Series: CoroCut® QD, SL-QD-RGF22C25, Right Hand Cutting, Insert Compatibility: QD-NF-0250-0002-CM, 0.8661 in Maximum Depth of Cut, 0.3543 in Head Length, 1.4212 in Center to Cutting Edge, Steel
Sandvik Coromant Grooving Head, SL Head, Series: CoroCut® QD, SL-QD-RGF22C25, Right Hand Cutting, Insert Compatibility: QD-NF-0250-0002-CM, 0.8661 in Maximum Depth of Cut, 0.3543 in Head Length, 1.4212 in Center to Cutting Edge, Steel
Alternate Catalog Number SL-QD-RGF22C25 Catalog Number 6427827 Country of Origin SE Gross Weight Per Pack 0.1600 lb Head Length 9 mm Item Group 420 Material Steel Modular Head Style SL-QD-RG Series CoroCut® QD System Size 25 mm Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 36.1 mm Cutting Direction Right Hand Insert Compatibility QD-NF-0250-0002-CM Insert Style QD-NF Maximum Depth of Cut 22 mm High precision coolant|Y-axis parting|Stable, user-friendly clamping with a railed insert seat for a precise insert position and a quick-release key that eliminates the need for a torque wrench|Adjustable cutting depth and overhang with maintained coolant|Made of a strong material alloy with high fatigue resistance, the blades are optimized for reliable parting off and deep grooving|Spring lock design 90 deg body workpiece side Axial concentric coolant entry 80 bar coolant Axial inclined coolant exit 25 mm Dia connection 65 mm Dia minimum bore 0 deg rake orthogonal 0.1 mm H functional 90 deg cutting edge 0 deg inclination 20 life cycle state 7.75 mm length to cutting item reference point 12.9 mm OAL 9 mm overhang ANSI Code: SL-QD-RGF22C25 ISO Code: SL-QD-RGF22C25
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | SL-QD-RGF22C25 |
| Catalog Number | 6427827 |
| Country of Origin | SE |
| Gross Weight Per Pack | 0.1600 lb |
| Head Length | 9 mm |
| Item Group | 420 |
| Material | Steel |
| Modular Head Style | SL-QD-RG |
| Series | CoroCut® QD |
| System Size | 25 mm |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 36.1 mm |
| Cutting Direction | Right Hand |
| Insert Compatibility | QD-NF-0250-0002-CM |
| Insert Style | QD-NF |
| Maximum Depth of Cut | 22 mm |
| High precision coolant|Y-axis parting|Stable, user-friendly clamping with a railed insert seat for a precise insert position and a quick-release key that eliminates the need for a torque wrench|Adjustable cutting depth and overhang with maintained coolant|Made of a strong material alloy with high fatigue resistance, the blades are optimized for reliable parting off and deep grooving|Spring lock design |
| 90 deg body workpiece side |
| Axial concentric coolant entry |
| 80 bar coolant |
| Axial inclined coolant exit |
| 25 mm Dia connection |
| 65 mm Dia minimum bore |
| 0 deg rake orthogonal |
| 0.1 mm H functional |
| 90 deg cutting edge |
| 0 deg inclination |
| 20 life cycle state |
| 7.75 mm length to cutting item reference point |
| 12.9 mm OAL |
| 9 mm overhang |
| ANSI Code: SL-QD-RGF22C25 |
| ISO Code: SL-QD-RGF22C25 |
