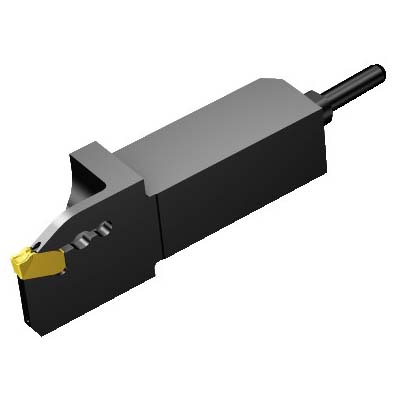

Sandvik Coromant 6427803 CoroCut® QD QS Indexable Shank Tool, QD-NE-0200-0002-CM insert, E Insert Seat, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6427803 CoroCut® QD QS Indexable Shank Tool, QD-NE-0200-0002-CM insert, E Insert Seat, Right Hand
SKU1239399
MFGR #6427803
$/ea
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® QD QS, Insert Compatibility: QD-NE-0200-0002-CM, QS-QD-RFE16C1212S, 2.7559 in Overall Length, Rectangular Shank, 0.4724 in H x 0.4724 in W Shank, E Insert Seat, Right Hand Cutting, 0.6299 in Maximum Depth of Cut, Steel
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® QD QS, Insert Compatibility: QD-NE-0200-0002-CM, QS-QD-RFE16C1212S, 2.7559 in Overall Length, Rectangular Shank, 0.4724 in H x 0.4724 in W Shank, E Insert Seat, Right Hand Cutting, 0.6299 in Maximum Depth of Cut, Steel
Alternate Catalog Number QS-QD-RFE16C1212S Catalog Number 6427803 Country of Origin SE Gross Weight Per Pack 0.2000 lb Head Length 25 mm Internal or External External Item Group 480 Material Steel Series CoroCut® QD QS Toolholder Style QS-QD-R/LF..C..S Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility QD-NE-0200-0002-CM Insert Seat Size E Maximum Depth of Cut 16 mm Overall Length 70 mm Shank Size 12 mm H x 12 mm W Shank Type Rectangular 0 deg body workpiece side 20 life cycle state Axial concentric coolant entry 80 bar coolant 32 mm maximum workpiece parting diameter Axial concentric coolant exit 90 deg cutting edge 25 mm minimum overhang 0 deg inclination 0 deg rake ANSI Code: QS-QD-RFE16C1212S ISO Code: QS-QD-RFE16C1212S
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QS-QD-RFE16C1212S |
| Catalog Number | 6427803 |
| Country of Origin | SE |
| Gross Weight Per Pack | 0.2000 lb |
| Head Length | 25 mm |
| Internal or External | External |
| Item Group | 480 |
| Material | Steel |
| Series | CoroCut® QD QS |
| Toolholder Style | QS-QD-R/LF..C..S |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | QD-NE-0200-0002-CM |
| Insert Seat Size | E |
| Maximum Depth of Cut | 16 mm |
| Overall Length | 70 mm |
| Shank Size | 12 mm H x 12 mm W |
| Shank Type | Rectangular |
| 0 deg body workpiece side |
| 20 life cycle state |
| Axial concentric coolant entry |
| 80 bar coolant |
| 32 mm maximum workpiece parting diameter |
| Axial concentric coolant exit |
| 90 deg cutting edge |
| 25 mm minimum overhang |
| 0 deg inclination |
| 0 deg rake |
| ANSI Code: QS-QD-RFE16C1212S |
| ISO Code: QS-QD-RFE16C1212S |
