Sandvik Coromant

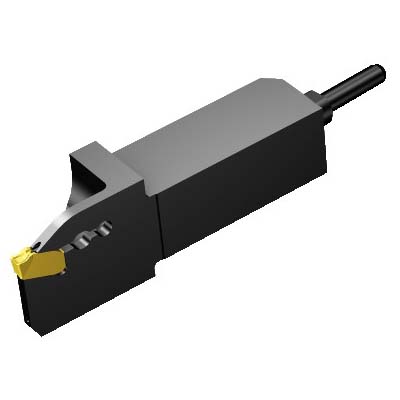

Sandvik Coromant 6427774 CoroCut® QD QS Indexable Shank Tool, QD-NF-0250-0002-CM insert, F Insert Seat, Left Hand
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6427774 CoroCut® QD QS Indexable Shank Tool, QD-NF-0250-0002-CM insert, F Insert Seat, Left Hand
SKU1238239
MFGR #6427774
$/ea
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® QD QS, Insert Compatibility: QD-NF-0250-0002-CM, QS-QD-LFF20C1212S, 2.7559 in Overall Length, Rectangular Shank, 0.4724 in H x 0.4724 in W Shank, F Insert Seat, Left Hand Cutting, 0.7874 in Maximum Depth of Cut, Steel
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® QD QS, Insert Compatibility: QD-NF-0250-0002-CM, QS-QD-LFF20C1212S, 2.7559 in Overall Length, Rectangular Shank, 0.4724 in H x 0.4724 in W Shank, F Insert Seat, Left Hand Cutting, 0.7874 in Maximum Depth of Cut, Steel
Catalog Number 6427774 Country of Origin SE Gross Weight Per Pack 0.1900 lb Head Length 25 mm Internal or External External Material Steel Series CoroCut® QD QS Toolholder Style QS-QD-R/LF..C..S Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Left Hand Insert Compatibility QD-NF-0250-0002-CM Insert Seat Size F Maximum Depth of Cut 20 mm Overall Length 70 mm Shank Size 12 mm H x 12 mm W Shank Type Rectangular 0 deg body workpiece side 20 life cycle state Axial concentric coolant entry 80 bar coolant 40 mm maximum workpiece parting diameter Axial concentric coolant exit 90 deg cutting edge 25 mm minimum overhang 0 deg inclination 0 deg rake ANSI Code: QS-QD-LFF20C1212S ISO Code: QS-QD-LFF20C1212S
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Catalog Number | 6427774 |
| Country of Origin | SE |
| Gross Weight Per Pack | 0.1900 lb |
| Head Length | 25 mm |
| Internal or External | External |
| Material | Steel |
| Series | CoroCut® QD QS |
| Toolholder Style | QS-QD-R/LF..C..S |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Left Hand |
| Insert Compatibility | QD-NF-0250-0002-CM |
| Insert Seat Size | F |
| Maximum Depth of Cut | 20 mm |
| Overall Length | 70 mm |
| Shank Size | 12 mm H x 12 mm W |
| Shank Type | Rectangular |
| 0 deg body workpiece side |
| 20 life cycle state |
| Axial concentric coolant entry |
| 80 bar coolant |
| 40 mm maximum workpiece parting diameter |
| Axial concentric coolant exit |
| 90 deg cutting edge |
| 25 mm minimum overhang |
| 0 deg inclination |
| 0 deg rake |
| ANSI Code: QS-QD-LFF20C1212S |
| ISO Code: QS-QD-LFF20C1212S |
