Sandvik Coromant 6427705 CoroCut® QD Indexable Shank Tool, QD-NE-0200-0002-CM insert, E Insert Seat, Left Hand

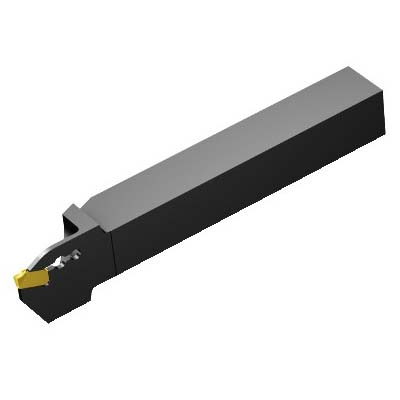

Custom_Product_Images_Illustration
Sandvik Coromant 6427705 CoroCut® QD Indexable Shank Tool, QD-NE-0200-0002-CM insert, E Insert Seat, Left Hand
SKU1239887
MFGR #6427705
$/ea
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® QD, Insert Compatibility: QD-NE-0200-0002-CM, QD-LFE12-0707S, 4.9212 in Overall Length, Rectangular Shank, 0.2755 in H x 0.2755 in W Shank, E Insert Seat, Left Hand Cutting, 0.4724 in Maximum Depth of Cut, Steel
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® QD, Insert Compatibility: QD-NE-0200-0002-CM, QD-LFE12-0707S, 4.9212 in Overall Length, Rectangular Shank, 0.2755 in H x 0.2755 in W Shank, E Insert Seat, Left Hand Cutting, 0.4724 in Maximum Depth of Cut, Steel
Alternate Catalog Number QD-LFE12-0707S Catalog Number 6427705 Country of Origin IN Gross Weight Per Pack 0.1700 lb Head Length 22 mm Internal or External External Item Group 480 Material Steel Series CoroCut® QD Toolholder Style QD-R/LF..S Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Left Hand Insert Compatibility QD-NE-0200-0002-CM Insert Seat Size E Maximum Depth of Cut 12 mm Overall Length 125 mm Shank Size 7 mm H x 7 mm W Shank Type Rectangular 0 deg body workpiece side 20 life cycle state Without coolant entry 24 mm maximum workpiece parting diameter No coolant exit 90 deg cutting edge 22 mm minimum overhang 0 deg inclination 0 deg rake ANSI Code: QD-LFE12-0707S ISO Code: QD-LFE12-0707S
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QD-LFE12-0707S |
| Catalog Number | 6427705 |
| Country of Origin | IN |
| Gross Weight Per Pack | 0.1700 lb |
| Head Length | 22 mm |
| Internal or External | External |
| Item Group | 480 |
| Material | Steel |
| Series | CoroCut® QD |
| Toolholder Style | QD-R/LF..S |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Left Hand |
| Insert Compatibility | QD-NE-0200-0002-CM |
| Insert Seat Size | E |
| Maximum Depth of Cut | 12 mm |
| Overall Length | 125 mm |
| Shank Size | 7 mm H x 7 mm W |
| Shank Type | Rectangular |
| 0 deg body workpiece side |
| 20 life cycle state |
| Without coolant entry |
| 24 mm maximum workpiece parting diameter |
| No coolant exit |
| 90 deg cutting edge |
| 22 mm minimum overhang |
| 0 deg inclination |
| 0 deg rake |
| ANSI Code: QD-LFE12-0707S |
| ISO Code: QD-LFE12-0707S |
